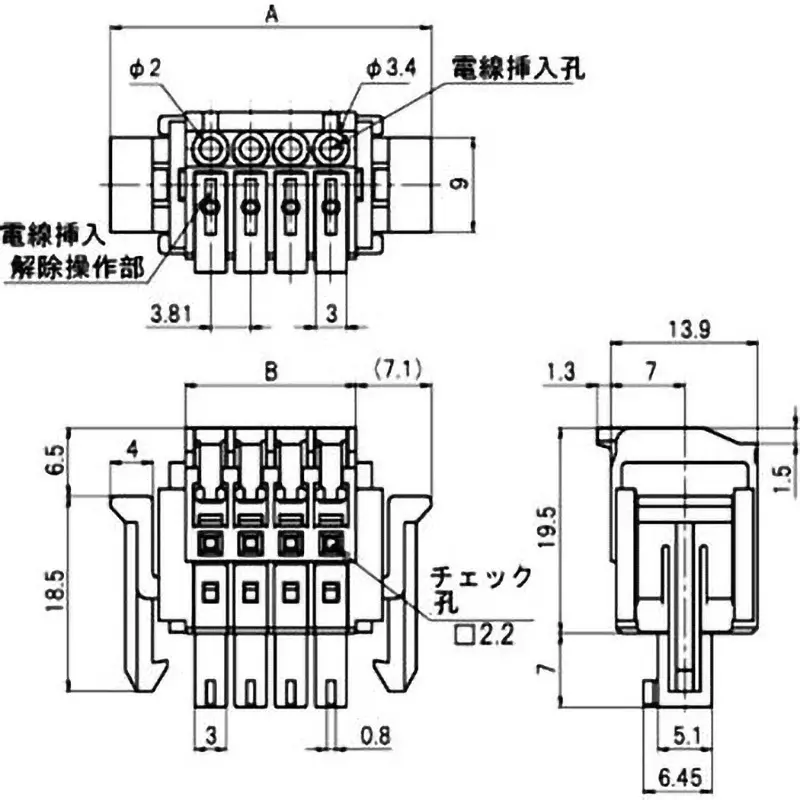

| Model No | SL-4000-AP-12PGY |
| Type of Product | Screwless Terminal Block 658 SL-4000-AP |
| Material | Main insulation (plug body) / nylon 66 (UL94V-0), main insulation (button) / modified PPE (UL94V-0) |
| RoHS Directive | Correspondence |
Model No |
SL-4000-AP-12PGY |
Type of Product |
Screwless Terminal Block 658 SL-4000-AP |
Material |
Main insulation (plug body) / nylon 66 (UL94V-0), main insulation (button) / modified PPE (UL94V-0) |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
300 |
Monotaro ID |
65813712 |
No. of Pole |
12 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Specifications |
SL-4000-AS, SL-4000-ASH, SL-4000-ASV, SL-4000-AWSH, SL-4000-AWSV only plug side product. |
Terminal Spacing |
3.81 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
GY (gray) |
Applicable Standard |
UL standard (compatible with field wiring), C-UL standard, TUV standard (IEC61984) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
Screwless |
Insulation_Resistance (MΩ) |
100 mΩ or More (DC500V) |
Current Rating, IEC (A) |
5 |
Current Rating, UL (A) |
5 |
Rating of Suitable Cable |
Single line: Φ0.8mm (AWG20), twisted wire: 0.50mm² (AWG20), wire diameter Φ0.18mm more |
Standard Cable Stripping Length (mm) |
9 |
Recommended Tool |
Slotted screwdriver * Anything that can push the button in is acceptable. |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG16 ), twisted wire: 0.2mm 2 ~ 1.25mm 2 (AWG24 ~ AWG16), wire diameter Φ0.18mm more |
Color of Operating Part |
W (white) |
