| Type | 2-row terminal block for relay |
| Model No | ML-20-10P |
| Type of Product | 2-Row Type ML-20 for Terminal Block Relay |
| RoHS Directive | Correspondence |
Type |
2-row terminal block for relay |
Model No |
ML-20-10P |
Type of Product |
2-Row Type ML-20 for Terminal Block Relay |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
250 |

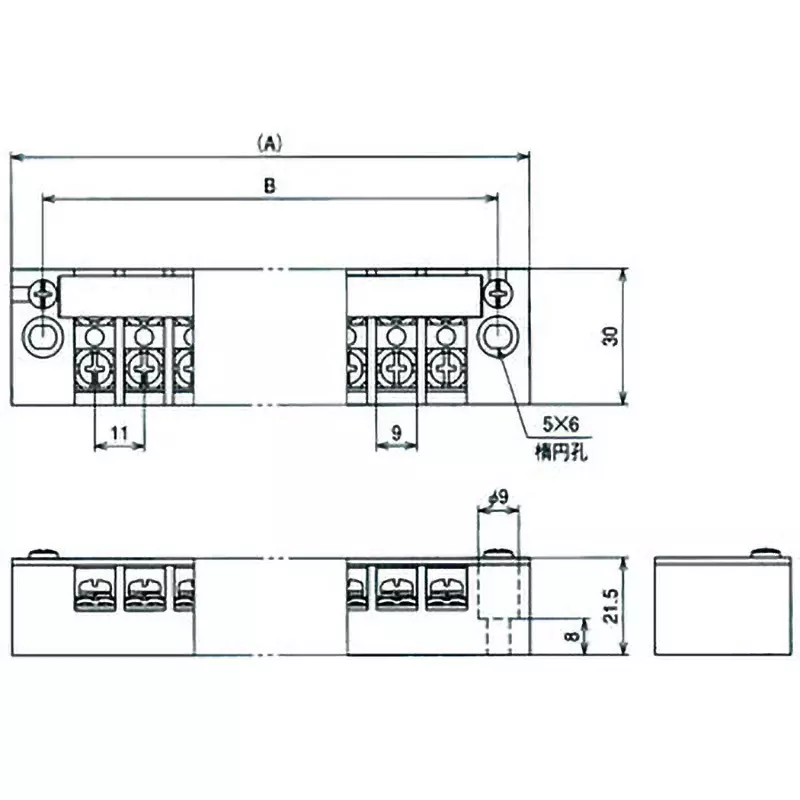

Dimensions A (mm) |
136 |
Monotaro ID |
6952967 |
No. of Pole |
10 Pole |
Terminal Screw |
M4x8 |
Dimensions B (mm) |
120.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Terminal Spacing |
11 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Applicable Standard |
UL standard, CSA standard (CSA certified products must be specified when ordering.) |
Insulator Material |
Body: Phenol (UL94V-0), Cover: PVC (UL94V-0) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
100 mΩ or More (DC500V) |
Current Rating, UL (A) |
20 |
