| Model No | SL-8000-GY |
| Type of Product | Screwless Terminal Block SL-8000 |
| Rated Current (A) | 10 |
| Rated Voltage (V) | 300 |
Model No |
SL-8000-GY |
Type of Product |
Screwless Terminal Block SL-8000 |
Rated Current (A) |
10 |
Rated Voltage (V) |
300 |
Monotaro ID |
11095744 |
No. of Pole |
1 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Solder / tab combination |
Pack of |
1 Pcs |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
W (white) |
Insulator Material |
Body: Nylon 66 (UL94V-0) Button: PPE (UL94V-0) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
Screwless |
Insulation_Resistance (MΩ) |
100 mΩ or More (DC500V) |
Rating of Suitable Cable |
Single wire: Φ1.2mm, stranded wire: 1.25mm², wire diameter Φ0.18mm or more |
Standard Cable Stripping Length (mm) |
9 to 10 |
Suitable Cable Range |
Single wire: Φ0.4mm to Φ1.2mm (AWG16 to AWG26), twisted wire: 0.2mm² to 1.25mm² (AWG16 to AWG24), strand diameter: Φ0.18mm or more, ferrule: 0.25mm² to 0.5mm² ( (AWG20 to AWG24) |
Color of Operating Part |
GY (gray) |
suitable crimping terminal |
187 tab (plate thickness 0.5mm) combined solder terminal |

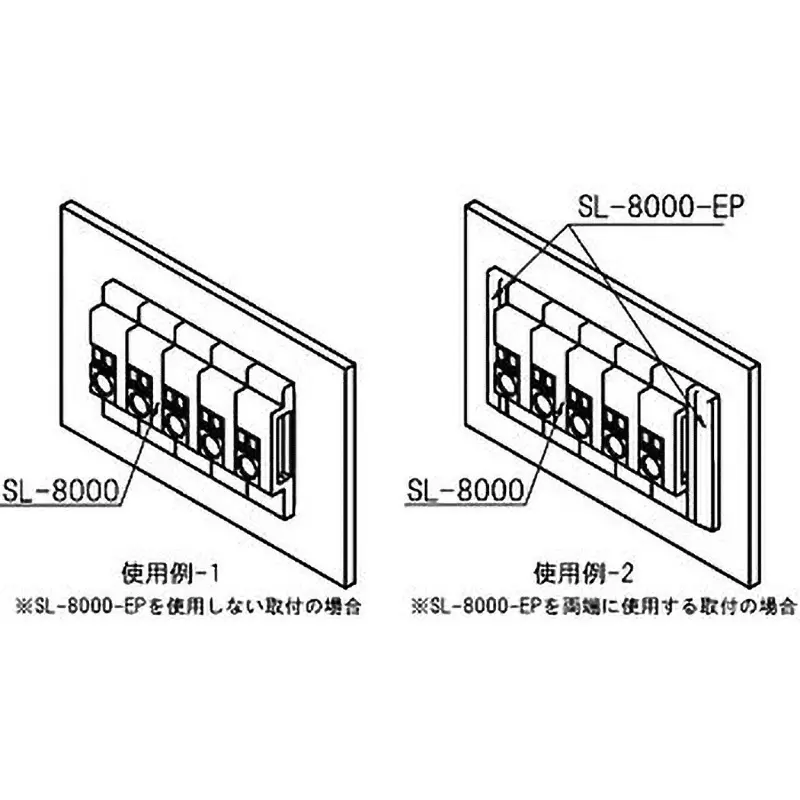

Suitable Door Thickness to Mount (mm) |
0.8 to 2.0 |
