| Model No | SL-4000-AS-2PGY |

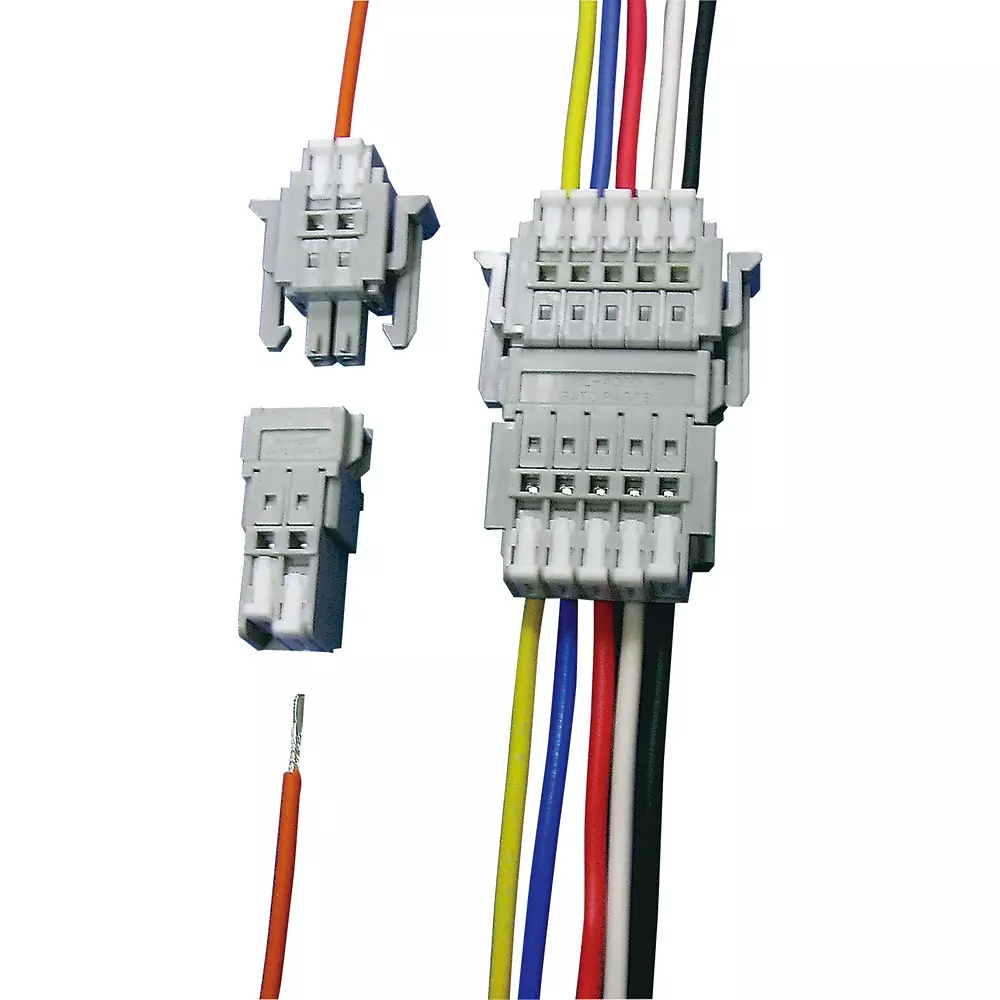

| Type of Product | Two-Piece Screwless Terminal Block Sl-4000-As Series |
| Material | Body: Nylon 66, Button: Modified polyphenylene ether |
| Width (mm) | 22.81 |
Model No |
SL-4000-AS-2PGY |
Type of Product |
Two-Piece Screwless Terminal Block Sl-4000-As Series |
Material |
Body: Nylon 66, Button: Modified polyphenylene ether |
Width (mm) |
22.81 |
Height (mm) |
13.9 |
Rated Voltage (V) |
DC300 |
Dimensions A (mm) |
22.81 |
Monotaro ID |
60962554 |
Length (mm) |
47.5 |
No. of Pole |
2P |
Contact Resistance |
30 mΩ or less (initial value) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |

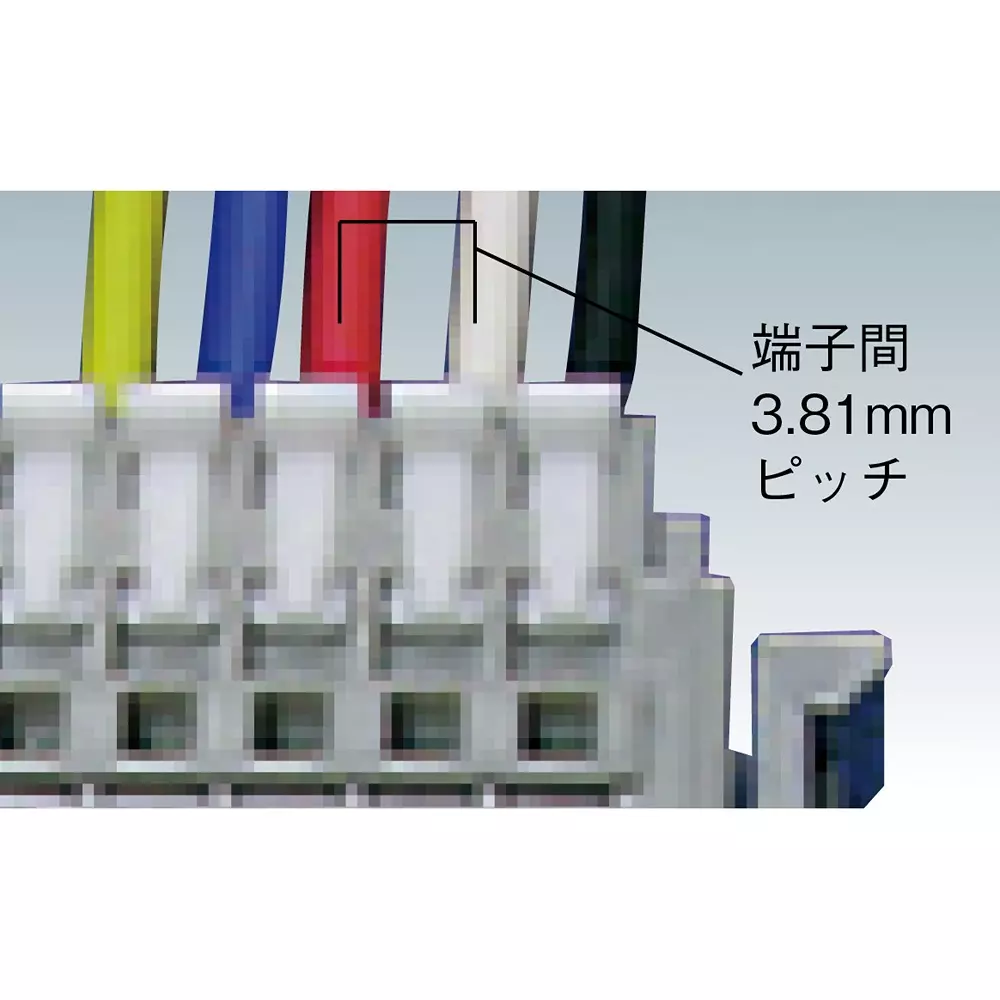

Terminal Spacing |
3.81 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
GY (gray) |
Mass (g) |
7.9 |
Applicable Standard |
UL standard (compatible with field wiring), C-UL standard, TUV standard (IEC61984) |
Trusco Part No. |
771-2863 |
Terminal Connection Type |
Screwless |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
Rating of Suitable Cable |
Single line: Φ0.8mm (AWG20), twisted wire: 0.50mm <sup>2</sup> (AWG20), wire diameter Φ0.18mm more |
Standard Cable Stripping Length (mm) |
9 |
Recommended Tool |
Slotted screwdriver * Anything that can push the button in is acceptable. |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.2mm (AWG26 ~ AWG16 ), twisted <sup><sup>wire: 0.2mm 2 ~ 1.25mm 2 (AWG24</sup></sup> ~ AWG16), wire diameter Φ0.18mm more |
