| Model No | ML-1700-F-12P |

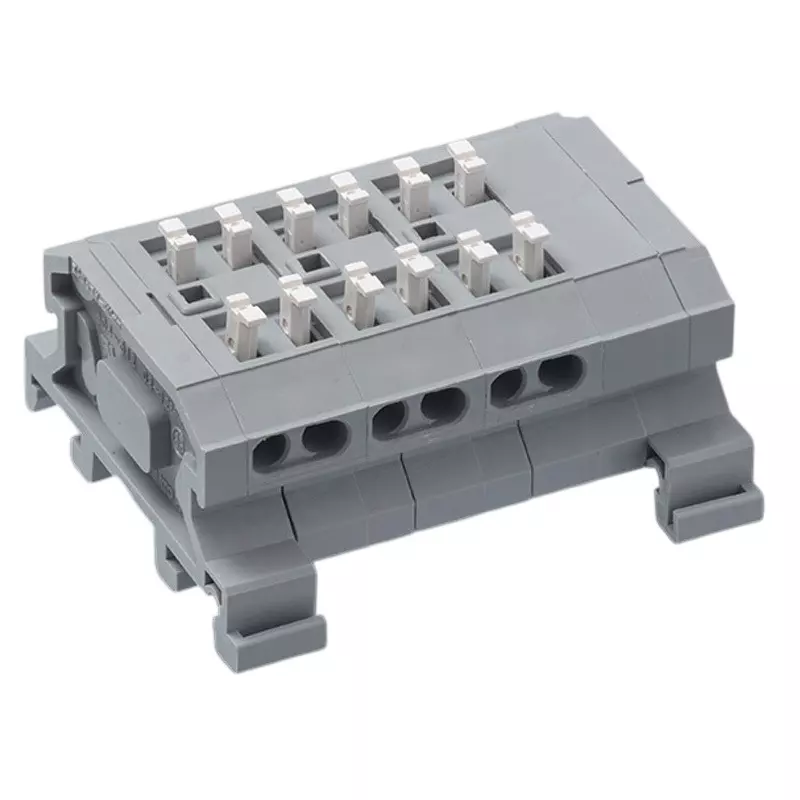

| Type of Product | Screwless Terminal Block, 4 Wire Type |
| Insulation Resistance | DC500V, 100MΩ or more |
| Withstand Voltage | AC2000V (1 minute) |
Model No |
ML-1700-F-12P |
Type of Product |
Screwless Terminal Block, 4 Wire Type |
Insulation Resistance |
DC500V, 100MΩ or more |
Withstand Voltage |
AC2000V (1 minute) |
RoHS Directive |
Correspondence |
Monotaro ID |
64426165 |
No. of Pole |
12 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pack of |
1 Pcs |
Rating |
300V-10A |
Specifications |
With check hole |

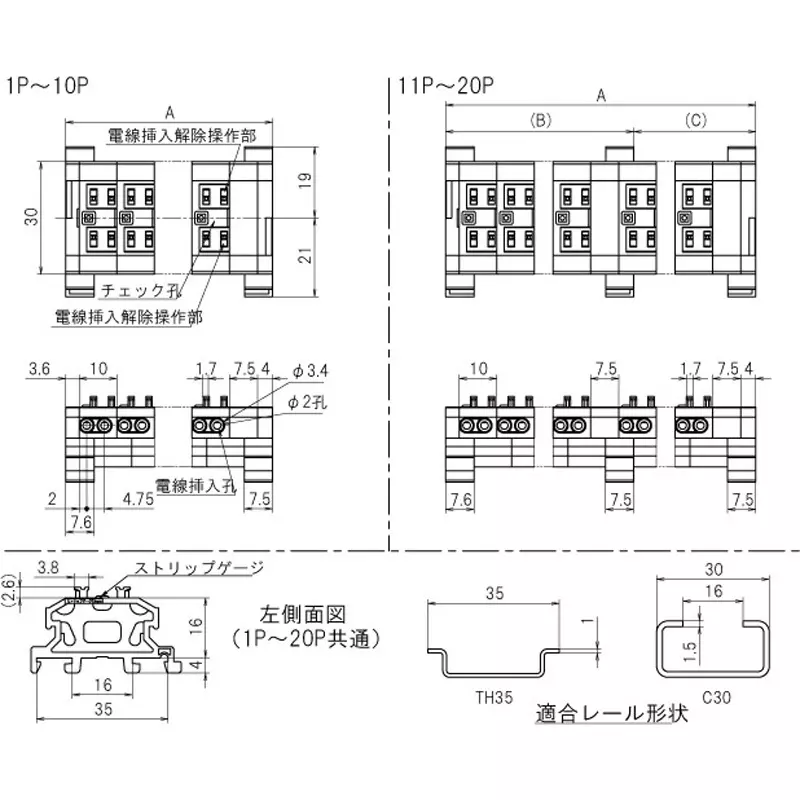

Suitable Rails |
[DIN rail] Top hat type, width 35mm and C type, width 30mm |
Terminal Spacing |
5 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Rating of Suitable Cable |
Solid wire: Φ1.2mm (AWG16), twisted wire 1.25mm² (AWG16) |
Suitable Cable Range |
Solid wire: Φ0.4mm to Φ1.2mm (AWG26 to AWG16), Stranded wire: 0.3mm² to 1.25mm² (AWG22 to AWG16) Wire diameter Φ0.18mm or more |
Standard to Conform |
UL standard (field wiring compatible), CSA standard, TUV standard (compliant with IEC60947-7-1) |
Standard Stripping Length |
10mm |
