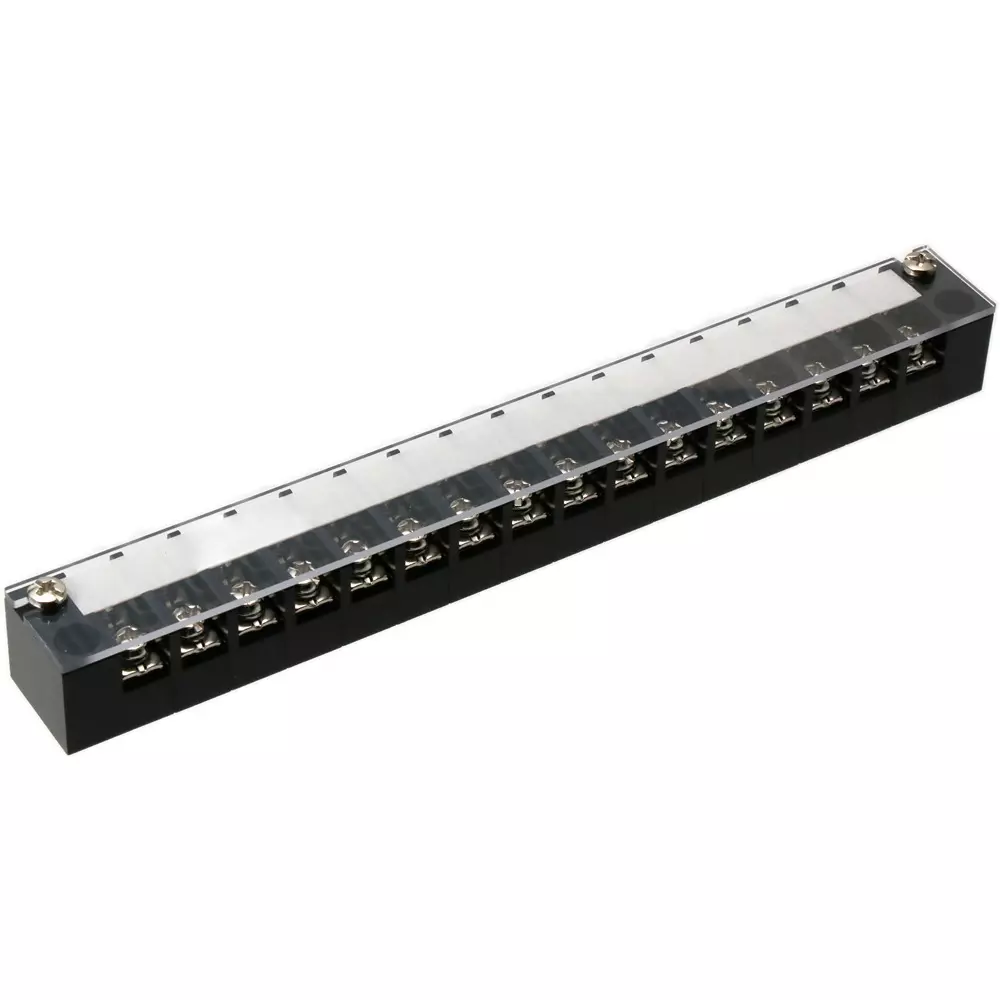

| Model No | ML-1-16P |
| Type of Product | Screw Type Terminal Block |
| Material | Main insulation (main body) / phenol (UL94V-0), main insulation (cover) / polycarbonate (UL94V-0) |
| Height (mm) | 17.5 |
Model No |
ML-1-16P |
Type of Product |
Screw Type Terminal Block |
Material |
Main insulation (main body) / phenol (UL94V-0), main insulation (cover) / polycarbonate (UL94V-0) |
Height (mm) |
17.5 |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
300 (TUV standard 250) |
Monotaro ID |
65812285 |
No. of Pole |
16 Pole |
Terminal Screw |
M3.5x8 |

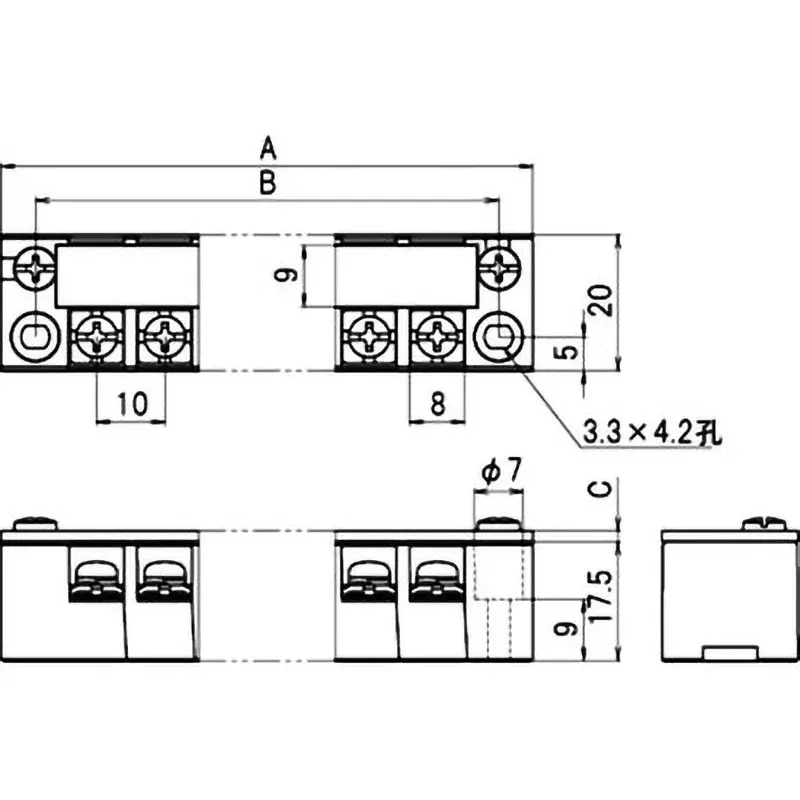

Dimensions C (mm) |
1.5 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Terminal Spacing |
10 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Applicable Standard |
UL standard, TUV standard (conforms to IEC60947-7-1) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
100 mΩ or More (DC500V) |
Current Rating, IEC (A) |
15 |
Current Rating, UL (A) |
15 |
Screw Tightening Torque (Nm) |
0.8 |
Wall Thickness (mm) |
(Cover) 1.5 |
