| Model No | ML-1-3P |

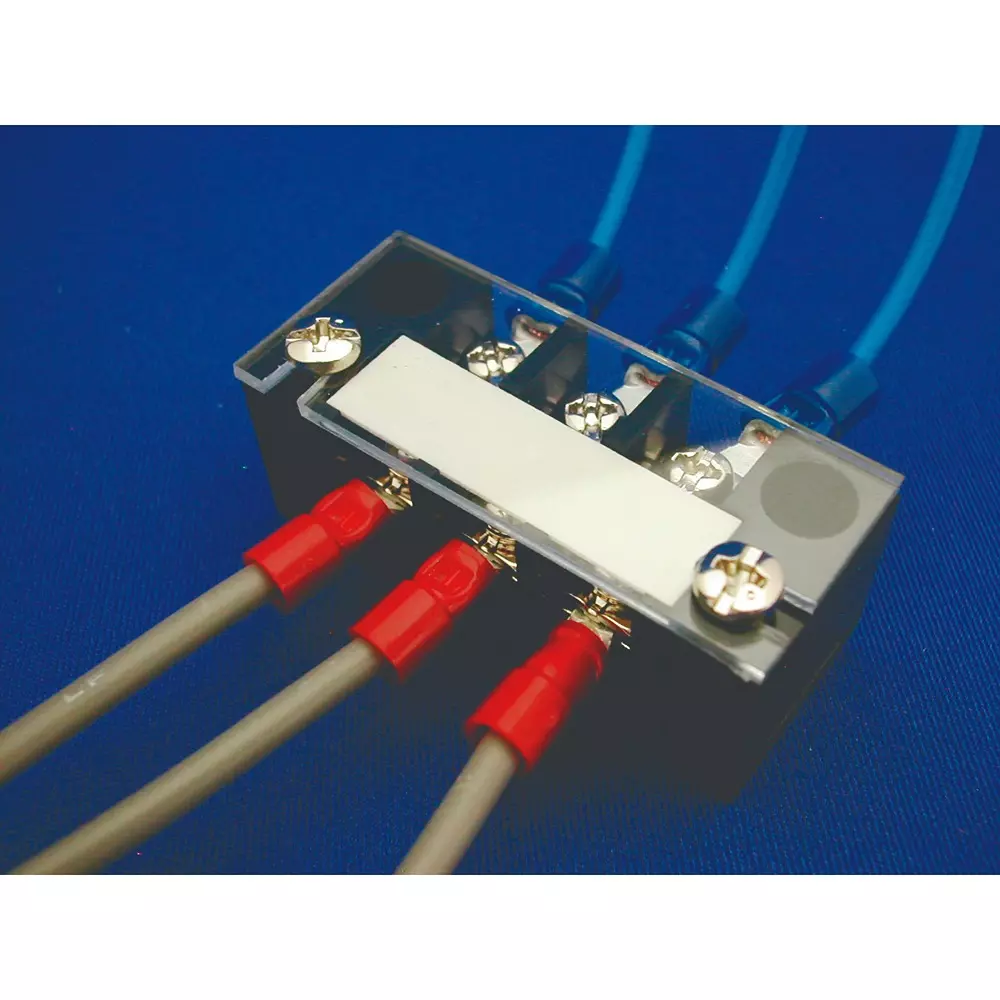

| Type of Product | 2-Row Terminal Block |
| Material | Body: Phenol, Cover: Polycarbonate |
| Width (mm) | 20 |
Model No |
ML-1-3P |
Type of Product |
2-Row Terminal Block |
Material |
Body: Phenol, Cover: Polycarbonate |
Width (mm) |
20 |
Height (mm) |
17.5 |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
300 (TUV standard 250) |
Dimensions A (mm) |
48 |
Monotaro ID |
60962615 |
Length (mm) |
48 |
No. of Pole |
3P |
Terminal Screw |
M3.5x8 |
Dimensions C (mm) |
1 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Terminal Spacing |
10 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Mass (g) |
29.7 |
Applicable Standard |
UL standard, TUV standard (conforms to IEC60947-7-1) |
Withstand voltage (V / min) |
AC2000 |
Trusco Part No. |
771-2839 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
Screw Tightening Torque (Nm) |
0.8 |
