| Model No | ML-5100-M5-9P |

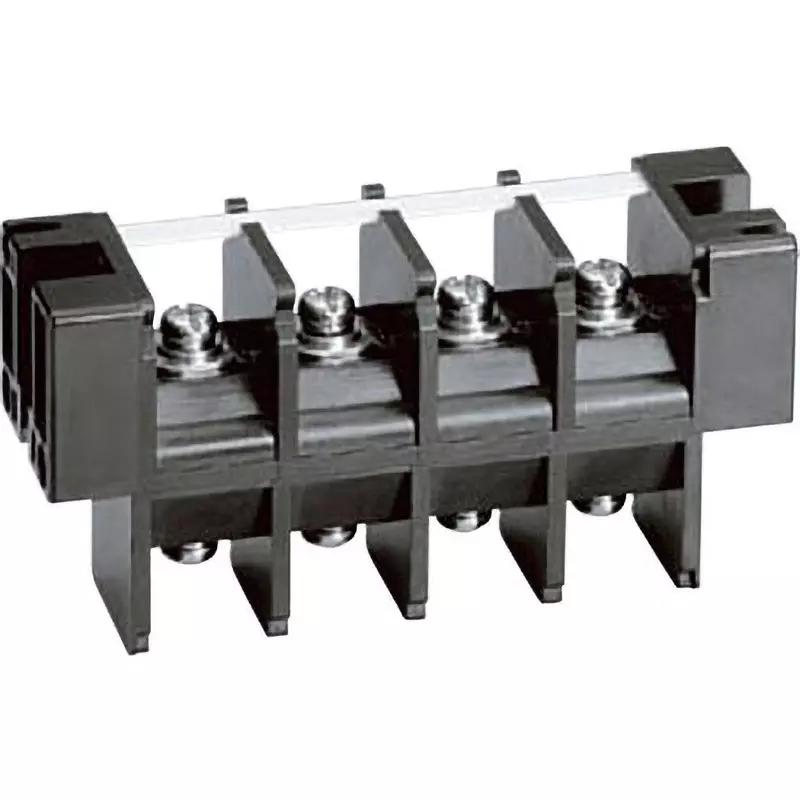

| Type of Product | Terminal Block Through Type |
| Rated Voltage (V) | 600 |

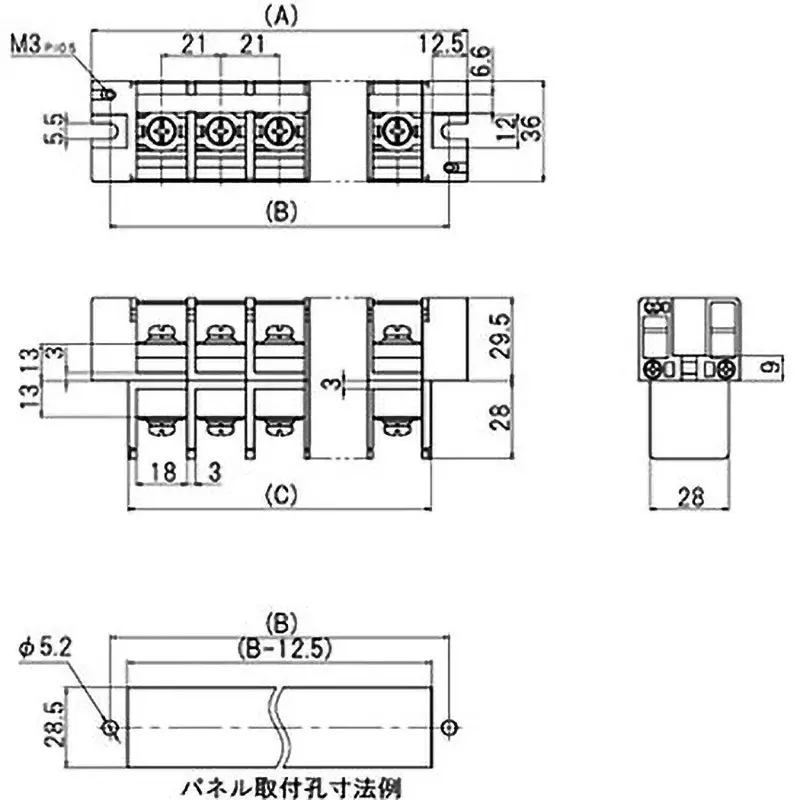

| Dimensions A (mm) | 218 |
Model No |
ML-5100-M5-9P |
Type of Product |
Terminal Block Through Type |
Rated Voltage (V) |
600 |
Dimensions A (mm) |
218 |
Monotaro ID |
75781553 |
No. of Pole |
9 Pole |
Terminal Screw |
M5x12 |
Dimensions B (mm) |
205 |
Dimensions C (mm) |
191 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Terminal Spacing |
21 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Applicable Standard |
UL standard, CSA standard, TUV standard |
Insulator Material |
Polycarbonate (UL94V-0) |
Withstand voltage (V / min) |
AC3000 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
1000 mΩ or More (DC500V) |
Current Rating, IEC (A) |
60 |
Current Rating, UL (A) |
60 |
