| Model No | SL-4500-AJ-4PB |
| Type of Product | Sl-4500 |
| RoHS Directive | Correspondence |
| Rated Voltage (V) | 300 |
Model No |
SL-4500-AJ-4PB |
Type of Product |
Sl-4500 |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
300 |

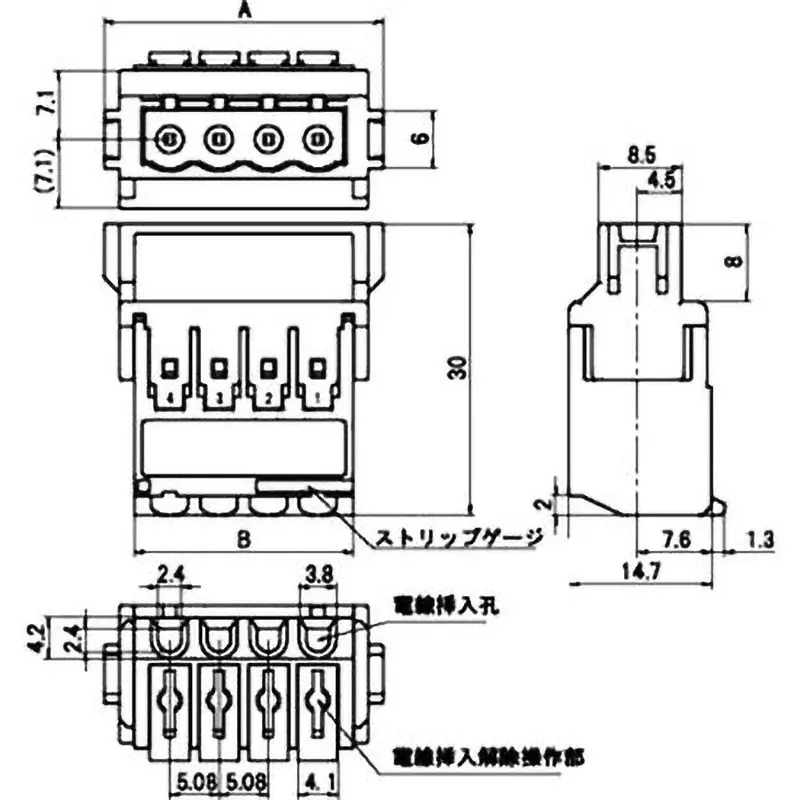

Dimensions A (mm) |
28.78 |
Monotaro ID |
26894053 |
No. of Pole |
4P |
Contact Resistance |
30 mΩ or less (initial value) |
Dimensions B (mm) |
22.58 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Terminal Spacing |
5.08 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Applicable Standard |
UL standard (compatible with field wiring), C-UL standard, TUV standard (IEC61984) |
Insulator Material |
Body: Nylon 66 (UL94V-0), Button: Nylon 66 (UL94V-0) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
Screwless |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
Current Rating, IEC (A) |
10 |
Rating of Suitable Cable |
Single line: Φ1.2mm (AWG16), twisted wire: 1.25mm <sup>2</sup> (AWG16), wire diameter Φ0.18mm more |
Standard Cable Stripping Length (mm) |
10 |
Recommended Tool |
Slotted screwdriver * Anything that can push the button in is acceptable. |
Suitable Cable Range |
Single line: Φ0.4mm ~ Φ1.6mm (AWG26 ~ AWG14 ), twisted <sup><sup>wire: 0.2mm 2 ~ 2.0mm 2 (AWG24</sup></sup> ~ AWG14), wire diameter Φ0.18mm more |
Color of Operating Part |
W (white) |
