| Model No | ML-2015-C-10P |
| Type of Product | Terminal Block Single Row Type |
| Rated Current (A) | 6 |
| Rated Voltage (V) | 250 |
Model No |
ML-2015-C-10P |
Type of Product |
Terminal Block Single Row Type |
Rated Current (A) |
6 |
Rated Voltage (V) |
250 |

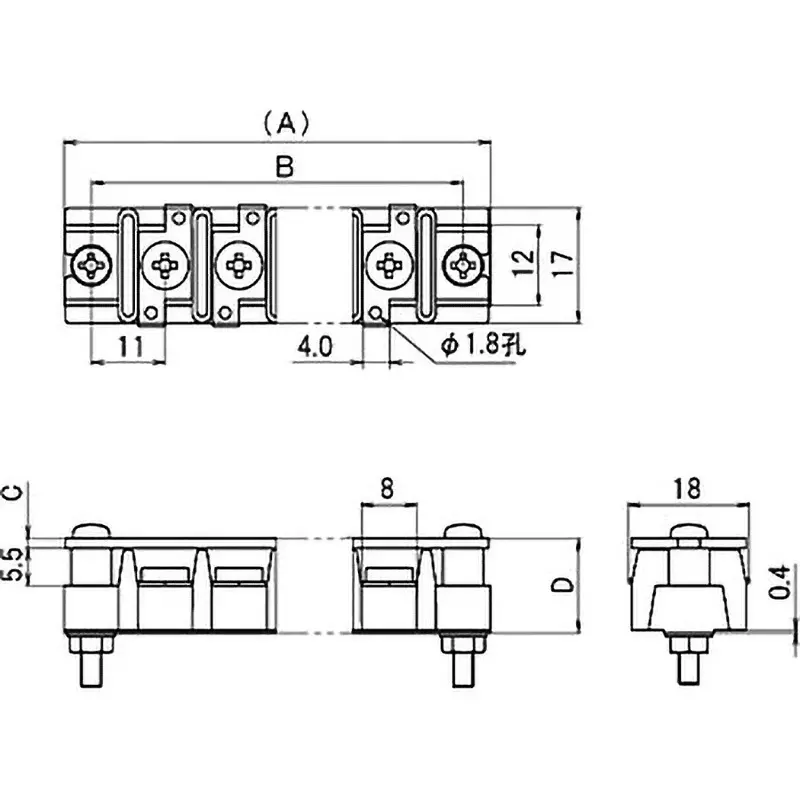

Dimensions A (mm) |
129.5 |
Monotaro ID |
75756581 |
No. of Pole |
10P |
Terminal Screw |
M3x6 |
Dimensions B (mm) |
120.9 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct attachment |
Pack of |
1 Pcs |
Specifications |
ML-2015, ML-1000-C3 (cover), ML-1000-WB3-S x 2 (mounting parts) as a set. (It will be shipped separately) |
Terminal Spacing |
11 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Insulator Material |
Body: Phenol (UL94V-0), Cover: PVC (UL94V-0) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
100 or more (DC500V) |
