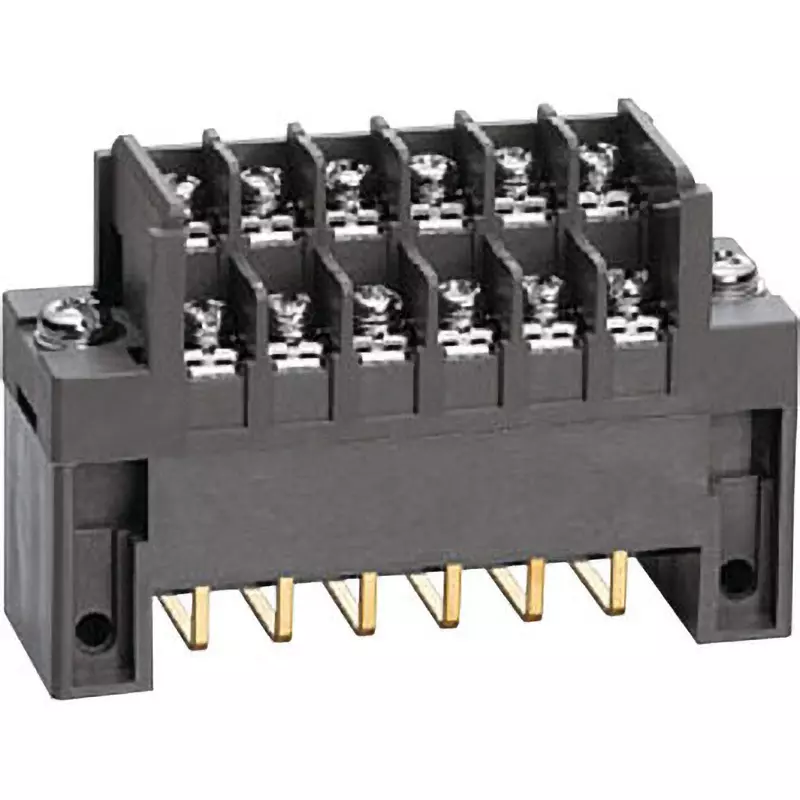

| Model No | ML-100-BS-36P |
| Type of Product | 2 Piece Terminal Block |
| RoHS Directive | Correspondence |
| Rated Voltage (V) | 250 |
Model No |
ML-100-BS-36P |
Type of Product |
2 Piece Terminal Block |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
250 |

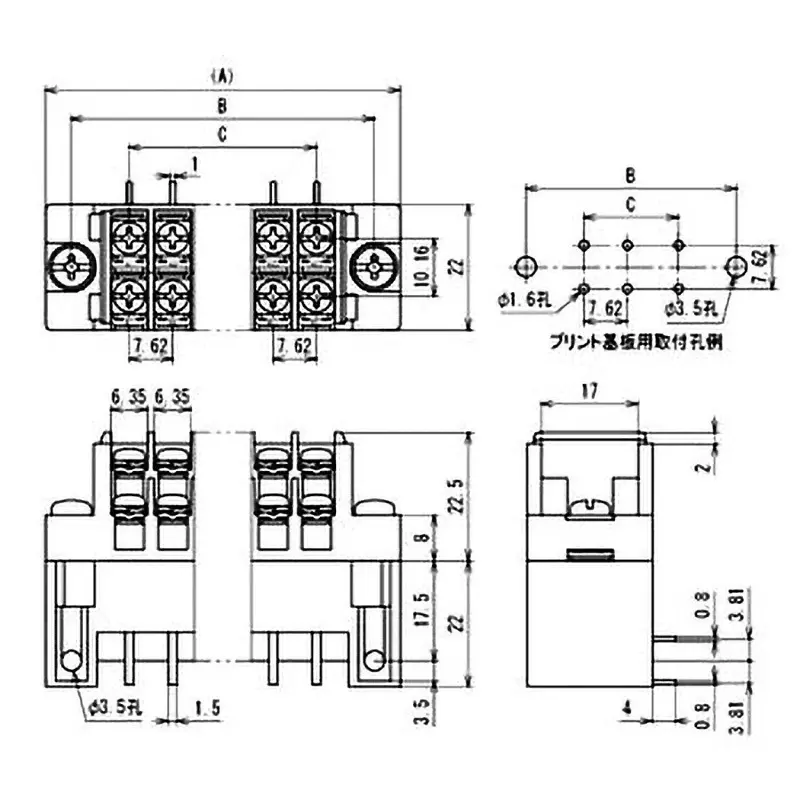

Dimensions A (mm) |
159.4 |
Monotaro ID |
39184652 |
No. of Pole |
36 Pole |
Contact Resistance |
10 mΩ or less (initial value) |
Terminal Screw |
M3x7.2 |
Dimensions B (mm) |
150.26 |
Dimensions C (mm) |
129.54 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Printed board |
Pack of |
1 Pcs |
Specifications |
The terminal number is displayed on the main unit. |
Terminal Spacing |
7.62 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
GY (gray) |
Applicable Standard |
UL standard |
Insulator Material |
P.B.T.(UL94V-0) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
1000 or More (DC500V) |
Rating of Suitable Cable |
0.75mm²(AWG18) |
Suitable Cable Range |
2mm² to 0.32mm²(AWG14 to AWG22) |
suitable crimping terminal |
Right angle PC terminal |
