| Model No | ML-70-A-10P |

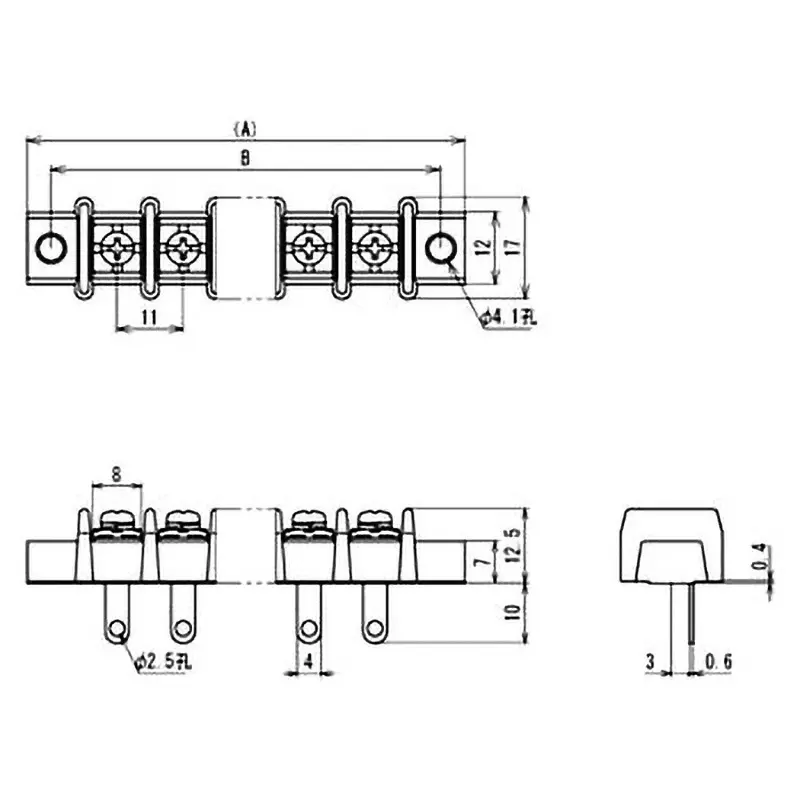

| Type of Product | Terminal Block for Soldering ML-70-A |
| RoHS Directive | Correspondence |
| Rated Voltage (V) | 250 |
Model No |
ML-70-A-10P |
Type of Product |
Terminal Block for Soldering ML-70-A |
RoHS Directive |
Correspondence |
Rated Voltage (V) |
250 |
Dimensions A (mm) |
129 |
Monotaro ID |
39185011 |
No. of Pole |
10 Pole |
Terminal Screw |
M3x8 |
Dimensions B (mm) |
121 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Solder |
Pack of |
1 Pcs |
Terminal Spacing |
11 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Applicable Standard |
UL standard |
Insulator Material |
Phenol (UL94V-0) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
100 mΩ or More (DC500V) |
Current Rating, UL (A) |
10 |
suitable crimping terminal |
Soldering terminal |
