| Model No | ML-270-S2G3YF-7P |

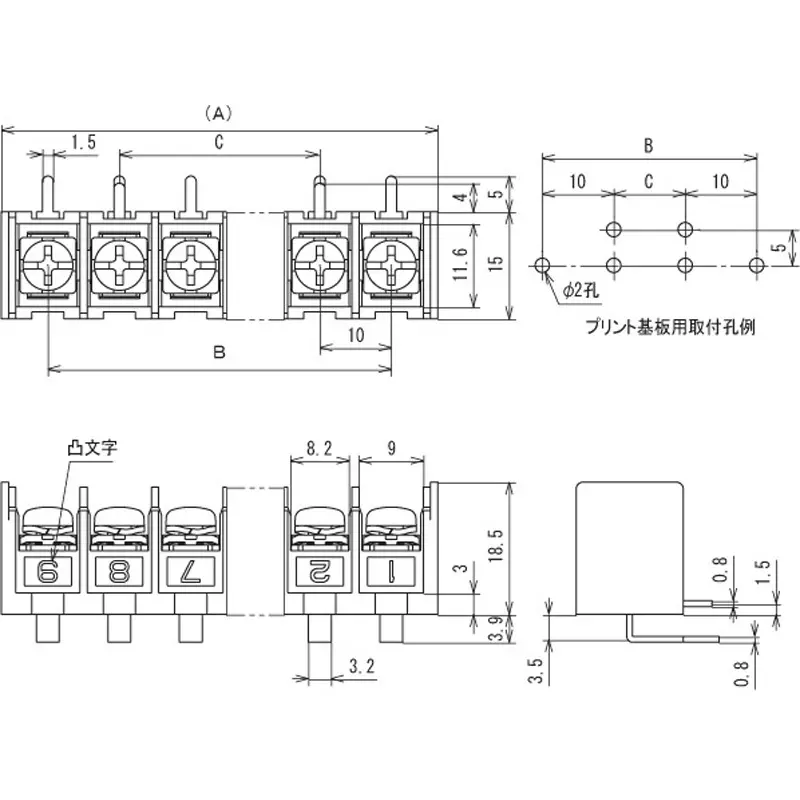

| Type of Product | Screw-Type Terminal Block, Terminal Pitch 10 mm |
| Insulation Resistance | DC500V, 1000MΩ or more |
| Withstand Voltage | AC2000V (1 minute) |
Model No |
ML-270-S2G3YF-7P |
Type of Product |
Screw-Type Terminal Block, Terminal Pitch 10 mm |
Insulation Resistance |
DC500V, 1000MΩ or more |
Withstand Voltage |
AC2000V (1 minute) |
RoHS Directive |
Correspondence |
Monotaro ID |
64427057 |
No. of Pole |
7 Pole |
Terminal Screw |
Screw with square washer (M4x8), terminal screw tightening torque 1.2N・m MAX |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pack of |
1 Pcs |
Rating |
250V-20A |
Terminal Spacing |
10 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
suitable crimping terminal |
Right angle PC terminal |
Standard to Conform |
UL standard (field wiring compatible) and TUV standard (compliant with IEC60947-7-1) |
