| Model No | ML-250-S1AXS-2P |

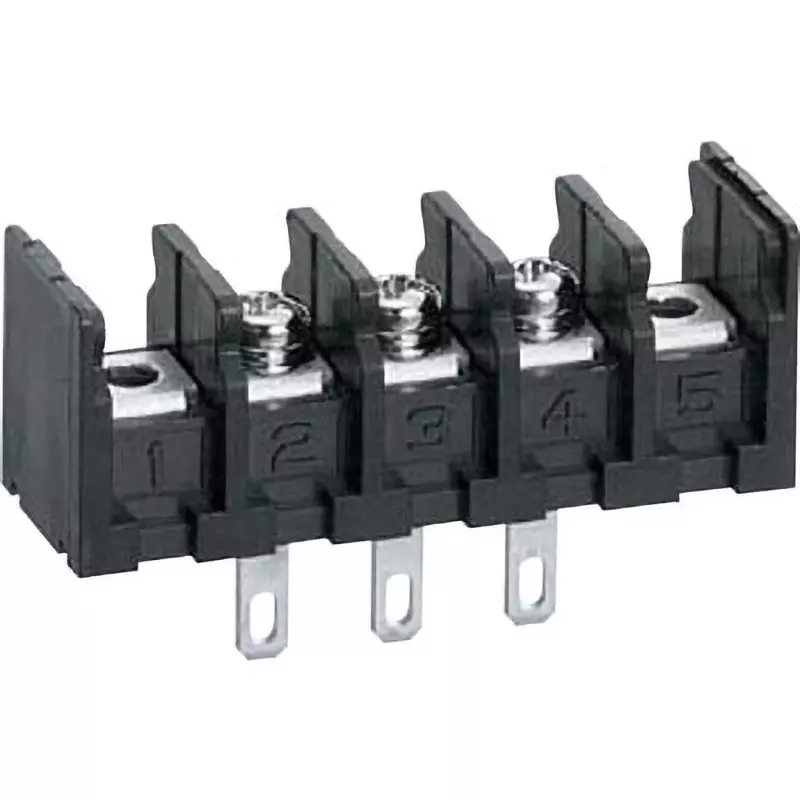

| Type of Product | ML-250-S1AXS for Terminal Block Soldering |
| Rated Voltage (V) | 250 |

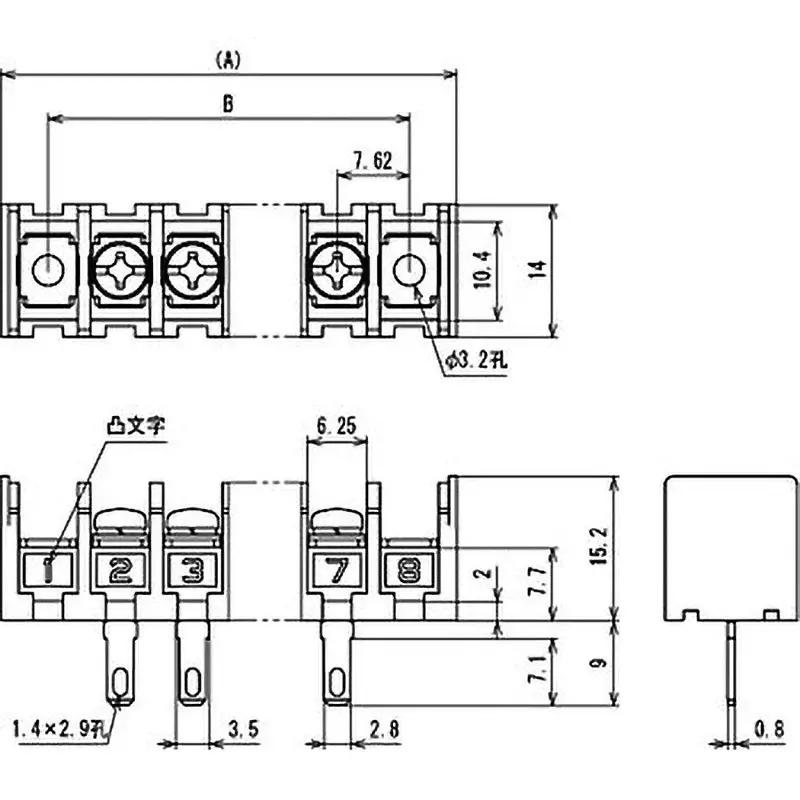

| Dimensions A (mm) | 32.85 |
Model No |
ML-250-S1AXS-2P |
Type of Product |
ML-250-S1AXS for Terminal Block Soldering |
Rated Voltage (V) |
250 |
Dimensions A (mm) |
32.85 |
Monotaro ID |
75775113 |
No. of Pole |
2 Pole |
Terminal Screw |
M3x6 |
Dimensions B (mm) |
22.86 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Solder / tab combination |
Pack of |
1 Pcs |
Specifications |
The terminal number is displayed on the main unit. |
Terminal Spacing |
7.62 mm |
Name of Manufacturer/Packer/Importer |
Sato Parts Co., Ltd. |
Body Color |
B (black) |
Applicable Standard |
UL standard, CSA standard, TUV standard (conforms to IEC60947-7-1) |
Insulator Material |
P.B.T.(UL94V-0) |
Withstand voltage (V / min) |
AC2000 |
Terminal Connection Type |
screw |
Insulation_Resistance (MΩ) |
1000 mΩ or More (DC500V) |
Current Rating, IEC (A) |
10 |
Current Rating, UL (A) |
10 |
suitable crimping terminal |
110 tab terminal for soldering (t0.8mm) |
