Ships within 19 days
View
View
View
View
| Model No | 709822-2 |
| Type of Product | Ring Terminal |
| RoHS Directive | Correspondence |
| Monotaro ID | 47406915 |
Model No |
709822-2 |
Type of Product |
Ring Terminal |
RoHS Directive |
Correspondence |
Monotaro ID |
47406915 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Specifications |

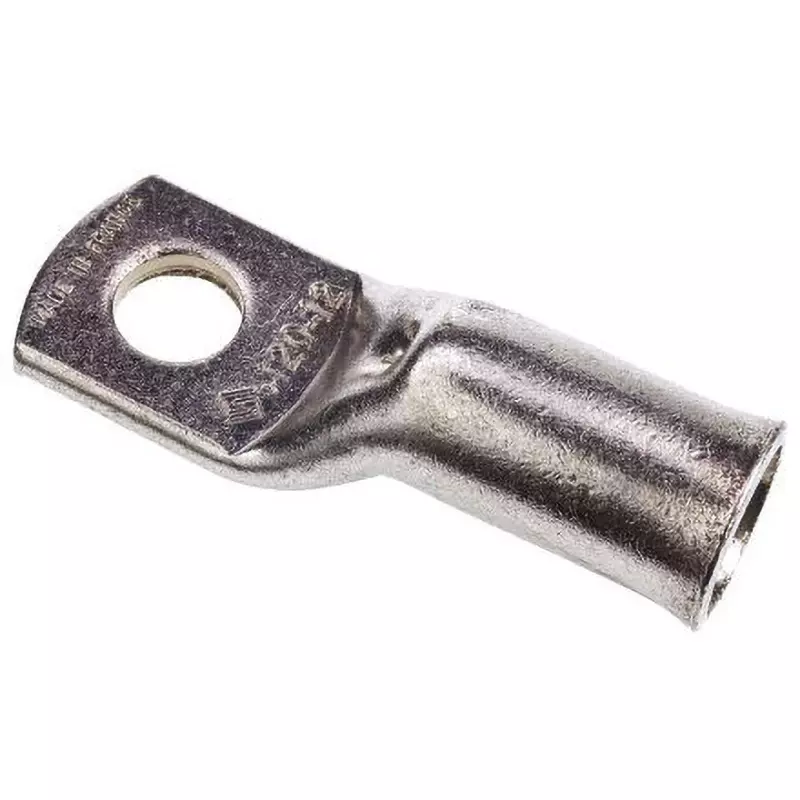

Series: XCT Insulation: Non-insulated Maximum wire size mm2: 185mm2 Stud size: 12mm Contact material: Copper Overall length: 88mm Designed according to French standard NF C 20 130. TE Connectivity XCT type tubular ring terminals. , copper conductors can be connected to the equipment terminals. These XCT type tubular ring terminals are made from high conductivity electrolytic copper with a bright tin plated finish that is resistant to oxidation and corrosion. The barrels of these XCT type tubular ring terminals have a funnel entry design for easy wire insertion. The barrel also has an inspection hole that allows you to check the alignment of the conductor. These XCT type tubular crimp terminals can be crimped by hex compression/indentation. Features and Benefits High conductivity electrolytic copper Bright tin plated finish to resist oxidation and corrosion Funnel entry barrel for easy wire insertion Inspection window in barrel |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
Series Type |
XCT |
