| Model No | 32859 |
| Type of Product | Crimp Terminal |
| Series | Budget |
| RoHS Directive | Correspondence |
Model No |
32859 |
Type of Product |
Crimp Terminal |
Series |
Budget |
RoHS Directive |
Correspondence |
Monotaro ID |
47407536 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Pack of |
1000 Pcs |
Specifications |

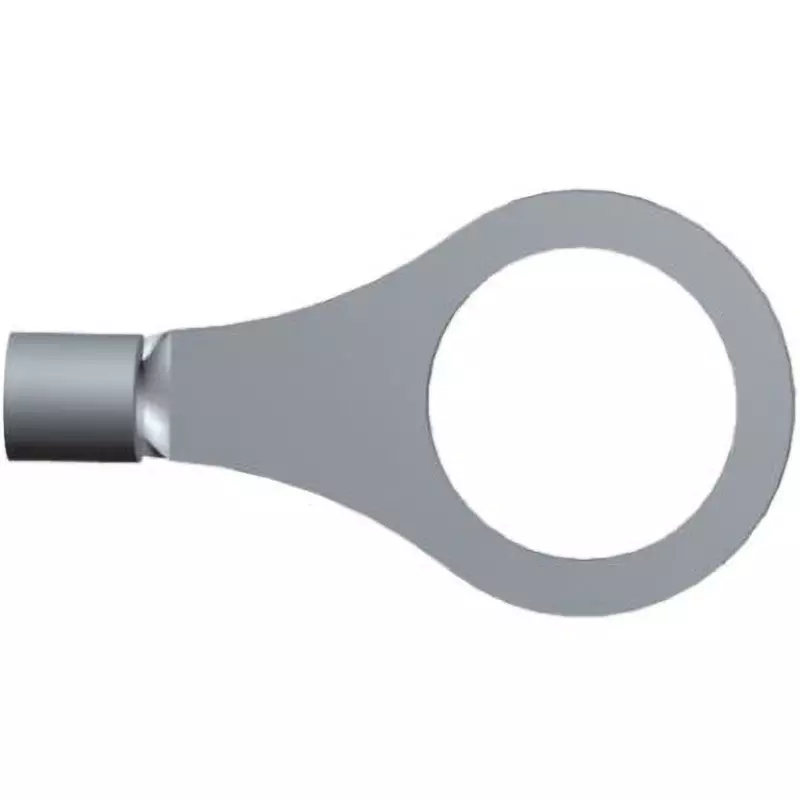

Series: Budget Insulation: Non-Insulated Outer Ring Diameter: 6.35 mm Minimum Wire Size mm2: 0.1 mm2 Minimum Wire Size AWG: 26AWG Shroud/Unshroud: Unshrouded Stud Size: M4 (#8) Contact Plating: Tin Thickness: 0.46 mm Overall Length: 13.82 mm TE Connectivity Low Cost Ring Tongue Terminals. Assorted closed barrel tin plated copper ring tongue terminals to acco mmodate 26-22 AWG wire sizes and wire/cable terminal CMA sizes 202-810 (0.1 to 0.41 mm <sup>2</sup> ). increase. This low cost ring tongue terminal has a maximum operating temperature of 170°C. |
Name of Manufacturer/Packer/Importer |
Tyco Electronics Japan G.K. |
