Ships within 25 days
View
View
View
View

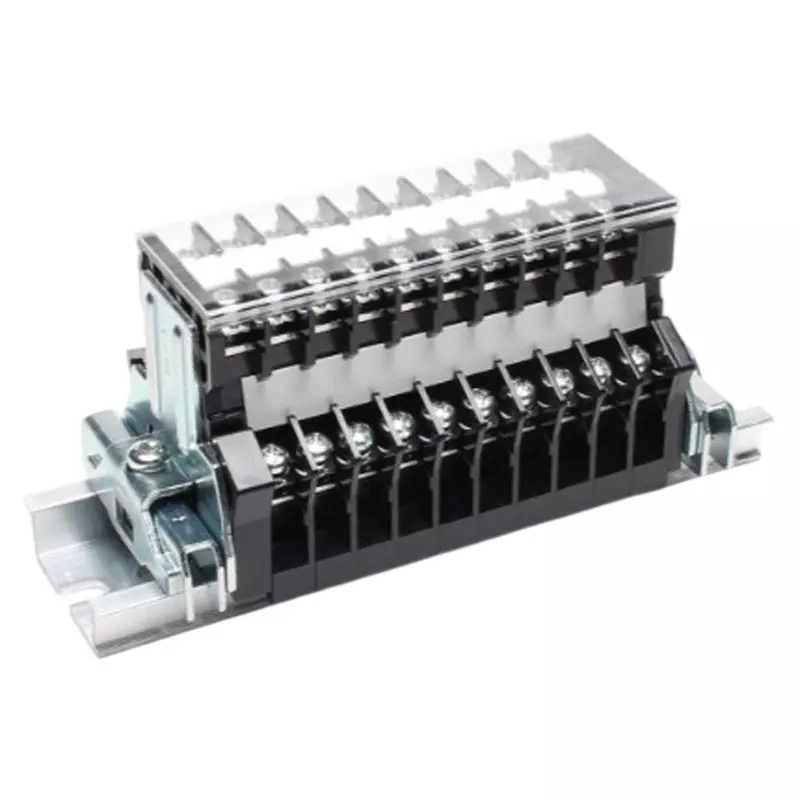

| Model No | PTWL-SS10-17U |
| Type of Product | Assembly Terminal Block |
| Screw Size | M3 |
| Shape | 2nd grade |
Model No |
PTWL-SS10-17U |
Type of Product |
Assembly Terminal Block |
Screw Size |
M3 |
Shape |
2nd grade |
Monotaro ID |
12302669 |
Tightening Torque (Nm) |
0.5 to 1.2 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Compatible Cable |
0.75, 1.25(JIS) |
Rated Insulation Voltage (V) |
AC/DC 380, TU certified specifications: AC/DC 600 |
Terminal Spacing |
7 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Applicable Wire Range AWG |
TUV certified specifications: 20 to 16 (stranded wire) |
Set Contents |
Terminal block |
Rated Carrying Current (A) |
<sup>0.75mm² : 11, 1.25mm² : 15, TUV certified specification: 15 |
Cover |
Bottom row: None |
Overall Length L |
Terminal block: 127.5 mm |
Mounting Pitch b (mm) |
170 |
Overall Length A (mm) |
Rail: 180 |
Number of Unit |
17 |
