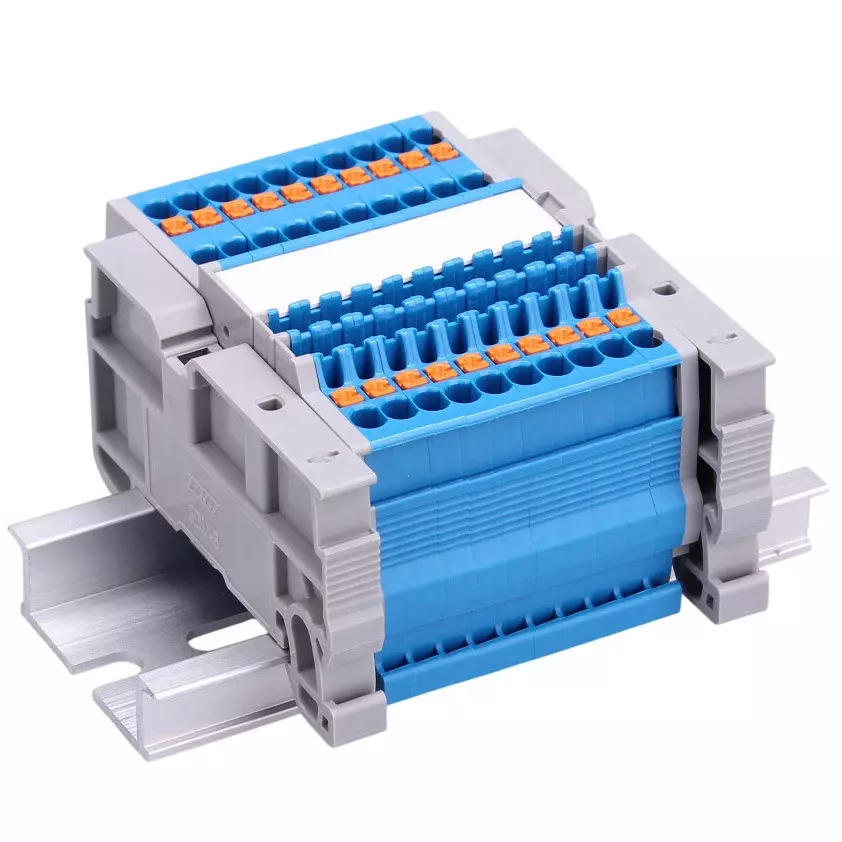

| Model No | VTXL-1.5/3BL-15P |
| Color | Blue |
| Type of Product | Assembly Terminal Block |
| Monotaro ID | 38921070 |
Model No |
VTXL-1.5/3BL-15P |
Color |
Blue |
Type of Product |
Assembly Terminal Block |
Monotaro ID |
38921070 |
No. of Pole |
15 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Compatible Cable |
(JIS)0.08/0.5/0.75/1.25/1.5 |
Applicable crimp terminal |
DIN46228-4 compliant |
Rated Insulation Voltage (V) |
AC/DC 500, (UL certified) AC/DC 300, (TUV certified) AC/DC 500 |
Terminal Spacing |
3.5 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
-/6/9/17/17, (UL certified) 10, (TUV certified) 17 |
Applicable Wire Size |
(UL certified) AWG28-16, (TUV certified) AWG28-16 |
Wire Stripping Length |
10 to 11 mm |
