Ships within 25 days
View
View
View
View

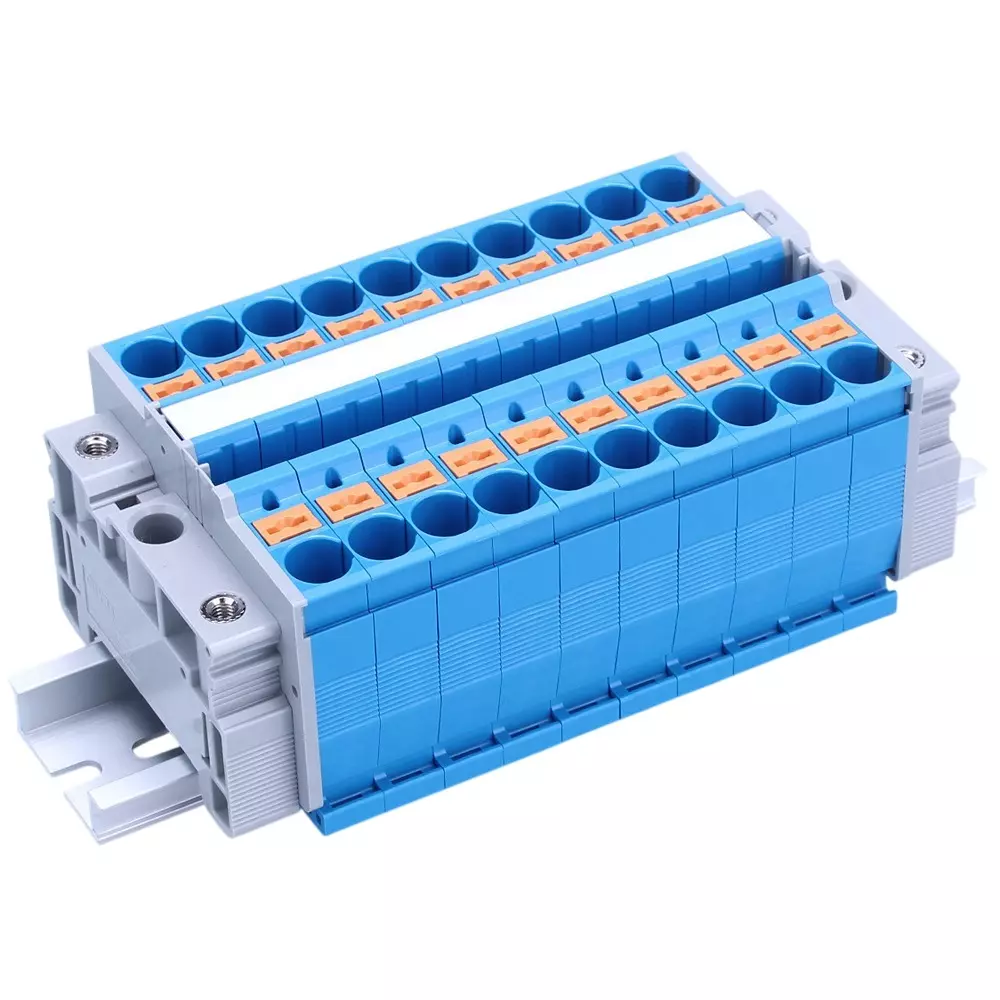

| Model No | VTXL-10/2BL-7P |
| Color | Blue |
| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
Model No |
VTXL-10/2BL-7P |
Color |
Blue |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
60322005 |
No. of Pole |
7 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Compatible Cable |
(JIS)0.75/1.5/2.5/4/10 |
Applicable crimp terminal |
DIN46228-4 compliant |
Rated Insulation Voltage (V) |
(General specifications) AC/DC 1000, (UL certified specifications) AC/DC 600, (CUL certified specifications) AC/DC 600, (TUV certified specifications) AC/DC 1000 |
Terminal Spacing |
10.2 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
(General specifications) 9/17/24/32/57, (UL certified specifications) 60, (CUL certified specifications) 60, (TUV certified specifications) 57 |
Type of Terminal Fitting |
DIN35mm |
Applicable Wire Size |
(UL certified) AWG20-6, (CUL certified) AWG20-6, (TUV certified) AWG20-8 |
Wire Stripping Length |
18 to 19 mm |
