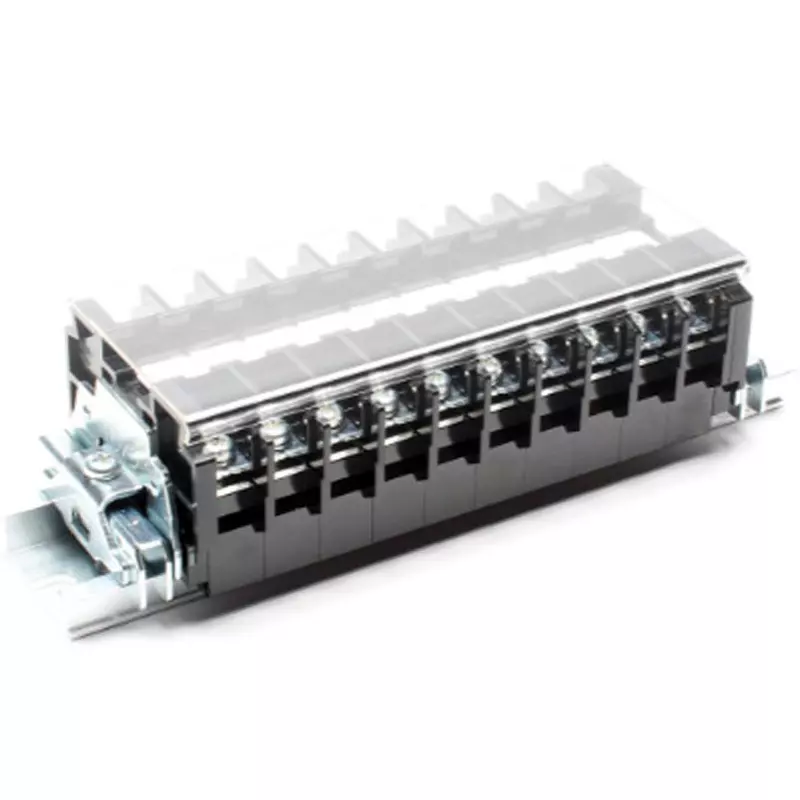

| Model No | JTL-40-5P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M4 |
| Rail | mm |
Model No |
JTL-40-5P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M4 |
Rail |
mm |
Shape |
1 Stage |
Monotaro ID |
9234000 |
Tightening Torque (Nm) |
1.2 to 1.8 |
No. of Pole |
5 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Terminal Block |
Total length L 63mm |
Rated Insulation Voltage (V) |
AC・DC 1000 |
Terminal Spacing |
11 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Screw Up |
Rated Carrying Current (A) |
40 |
Cable Size |
(JIS)5.5 |
Component Part |
Intermediate plate: JT-40 / Side plate: JT-40L / Cover: CA-47 / Name plate: AM-10 / Rail: DAV4 / Fastener: HDV-2 |
Mounting Screw Spacing (mm) |
B 90 |
