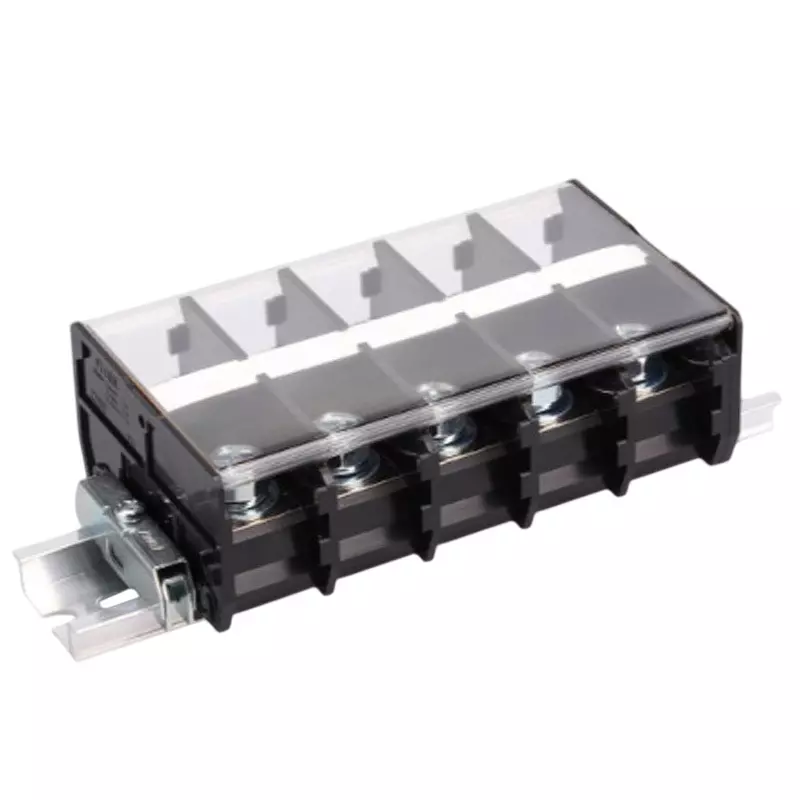

| Model No | PTL-100-19P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M8 |
| Rail | mm |
Model No |
PTL-100-19P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M8 |
Rail |
mm |
Shape |
1 Stage |
Monotaro ID |
9236380 |
Tightening Torque (Nm) |
6.0 to 9.0 |
No. of Pole |
19 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Terminal Block |
Total length L 471.5 |
Rated Insulation Voltage (V) |
AC/DC 1000/AC/DC 1000/AC/DC 1000/AC/DC 1000 (UL certified) AC/DC 600 (CUL certified) AC/DC 600 (TUV certified) AC/DC 600 |
Terminal Spacing |
24.5 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Rated Carrying Current (A) |
75/95/132/132 (UL certified) 125 (CUL certified) 125 (TUV certified) 132 |
Cable Size |
(JIS)14/22/38/60 (UL certified) AWG6 to 1/0 stranded wire (CUL certified) AWG6 to 1/0 stranded wire (TUV certified) AWG8 to 1/0 stranded wire |
Component Part |
Intermediate plate: PT-100 / Side plate: PT-100L / Cover: CA-69 / Name plate: AM-10 / Rail: DAV4 / Shaft: HDV-1 |
Mounting Screw Spacing (mm) |
B 510 |
