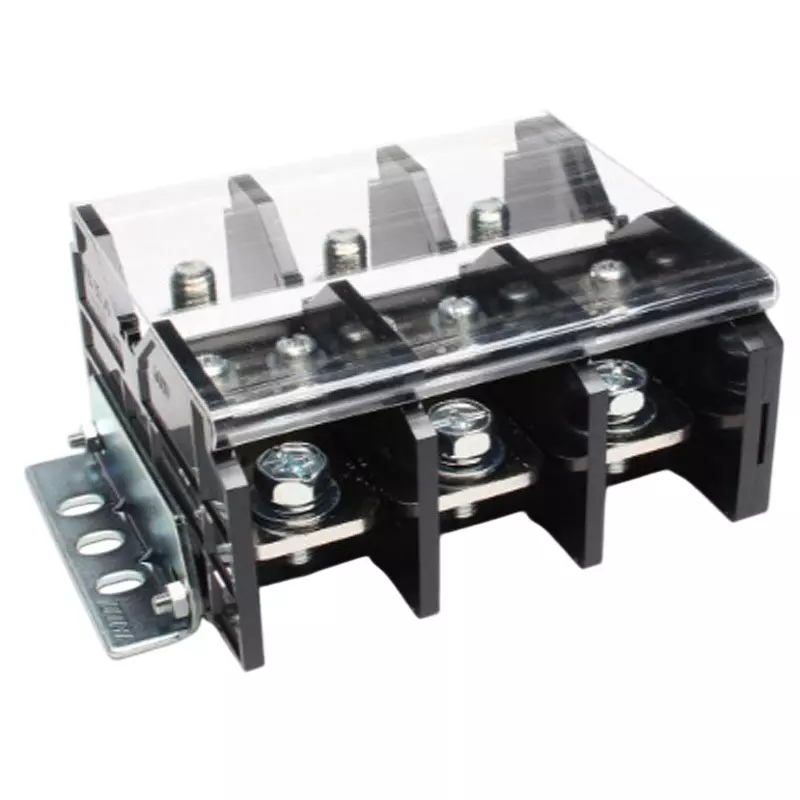

| Model No | PTXK-225-3P |
| Type of Product | Assembly Terminal Block |
| Monotaro ID | 13052771 |
| No. of Pole | 3 Pole |
Model No |
PTXK-225-3P |
Type of Product |
Assembly Terminal Block |
Monotaro ID |
13052771 |
No. of Pole |
3 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
600 V AC/DC |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Energized Current Rating |
(Connectable wires and maximum current) [Input side] M10 x 30L: 60mm² 175A/100mm² 240A [Output side (total: 240A MAX)] M8 x 16L: 22mm² 94A/38mm² 132A, M5 x 10L : 3.5mm² 30A/5.5mm² 40A /8.0mm² 50A |
Standard Tightening Torque (N.m) |
[Input side] M10 x 30L: 10.0 to 14.7 (JIS C 8201-7-1), 18.0 to 23.0 (JIS C 2805) [Output side] M8 x 16L: 6.0 to 9.0, M5 x 10L: 2.0 to 3.0 |
