| Model No | PTUL2-30-14P |

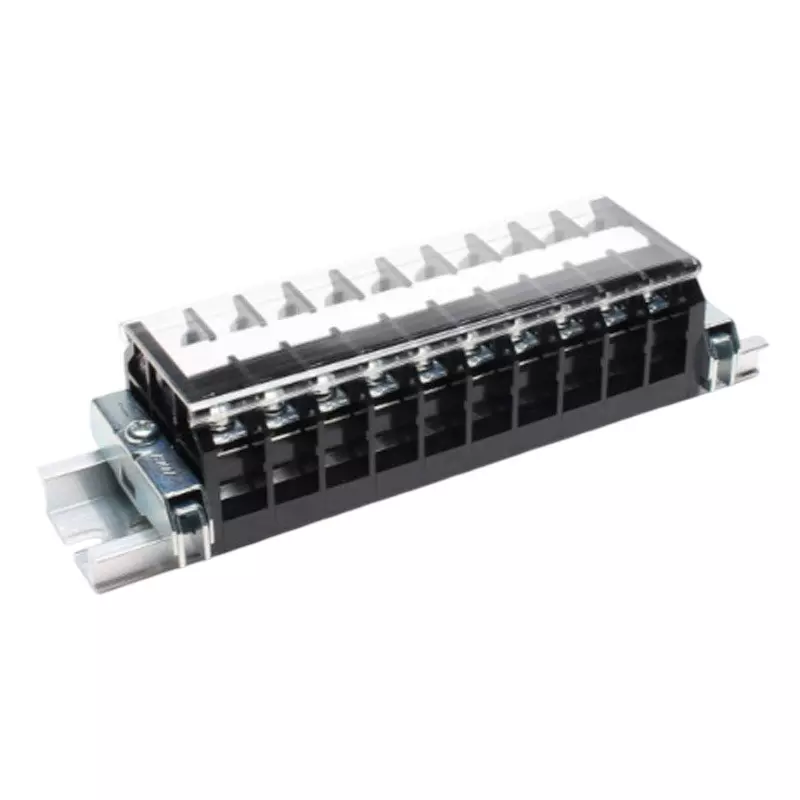

| Type of Product | Assembly Terminal Block |
| Screw Size | M4 |
| Tightening Torque | 1.2 to 1.8N・m |
Model No |
PTUL2-30-14P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M4 |
Tightening Torque |
1.2 to 1.8N・m |
Mounting |
DIN35mm |
Shape |
1 Stage |
Monotaro ID |
12219938 |
No. of Pole |
14 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
AC・DC 1000 |
Terminal Spacing |
10 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Screw Up |
Overall Length L |
Terminal block: 146 mm |
Component Part |
Intermediate plate: PTU-30, Side plate: PTU-30L2, Cover: CA-36, Name plate: AM-10, Rail: DAV4, Fastener: HDV-1 |
Energized Current Rating |
2mm²：22A, 3.5mm²：30A |
