Ships within 25 days
View
View
View
View
| Model No | PUWL-30-15U |

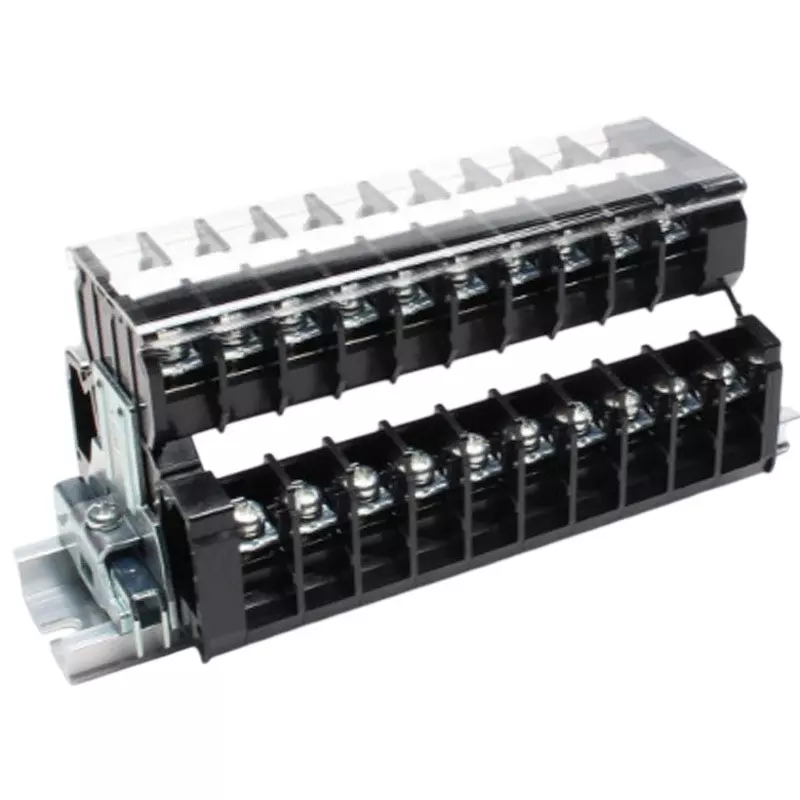

| Type of Product | Assembly Terminal Block |
| Screw Size | M4 |
| Shape | 2nd grade |
Model No |
PUWL-30-15U |
Type of Product |
Assembly Terminal Block |
Screw Size |
M4 |
Shape |
2nd grade |
Monotaro ID |
13572618 |
Tightening Torque (Nm) |
1.2 to 1.8 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Terminal Spacing |
10 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Screw Up |
Rated Carrying Current (A) |
AC/DC 800AC/DC 800, UL certified specifications: AC/DC 600, TU certified specifications: AC/DC 600, 2230, UL certified specifications: 30, TUV certified specifications: 30 |
Cable Size |
(JIS)2, 3.5 |
Number of Unit |
15 |
Cable Specification Type |
UL certified specifications: AWG18-12, TUV certified specifications: AWG18-12 |
