Ships within 25 days
View
View
View
View

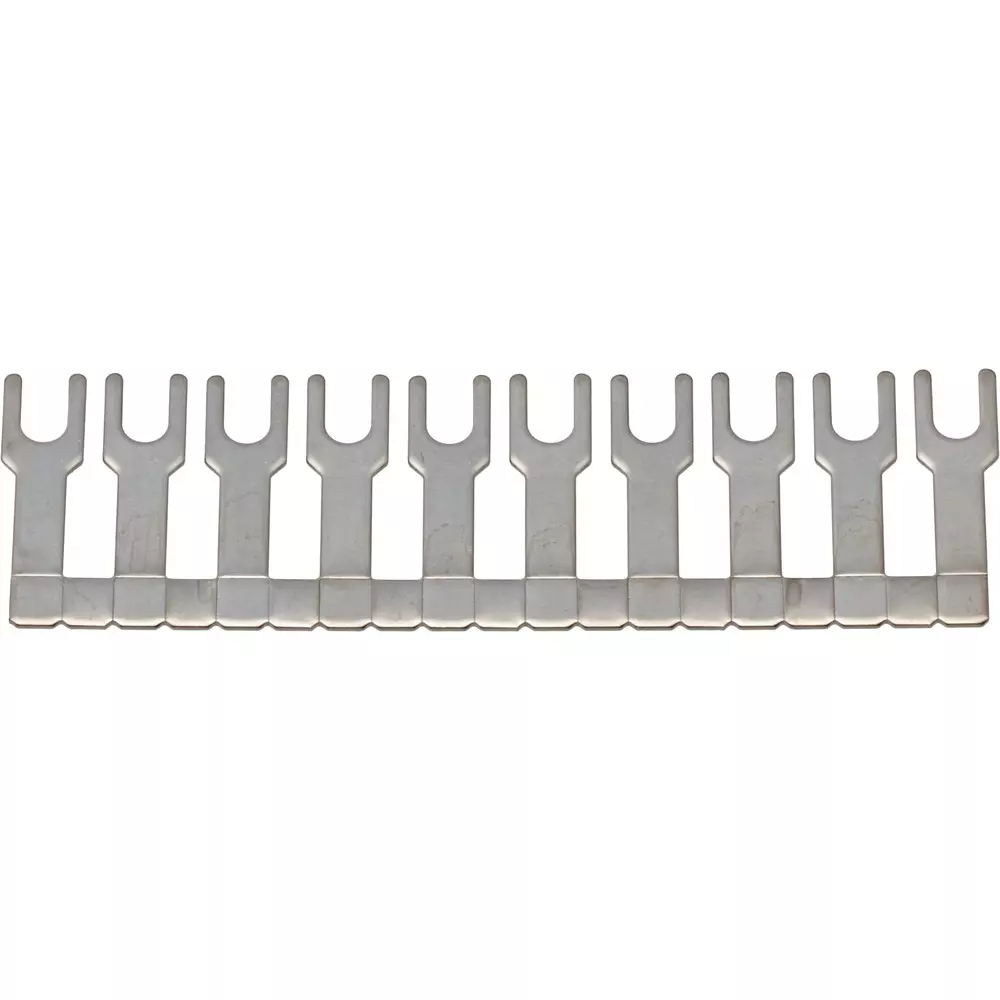

| Model No | SB7A-10 |
| Type of Product | Short Bar (SB Type) |
| Suitable For | PTU-10, PT-SS10, PUW-10, FP-10 |
| Connection Method | For Y-type crimp terminal |
Model No |
SB7A-10 |
Type of Product |
Short Bar (SB Type) |
Suitable For |
PTU-10, PT-SS10, PUW-10, FP-10 |
Connection Method |
For Y-type crimp terminal |
Dimensions A (mm) |
68.7 |
Monotaro ID |
87053391 |
No. of Pole |
10 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Material |
C2680R / Ni plating |
Terminal Spacing |
7 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Current Rating, JIS (A) |
15 |
Dimension D1 (mm) |
21 |
Dimension W |
5.7 mm |
Dimension d3 (mm) |
4 |
Dimension T |
0.6 mm |
Dimensions M (mm) |
3.2 |
Dimension D2 (mm) |
16.7 |
