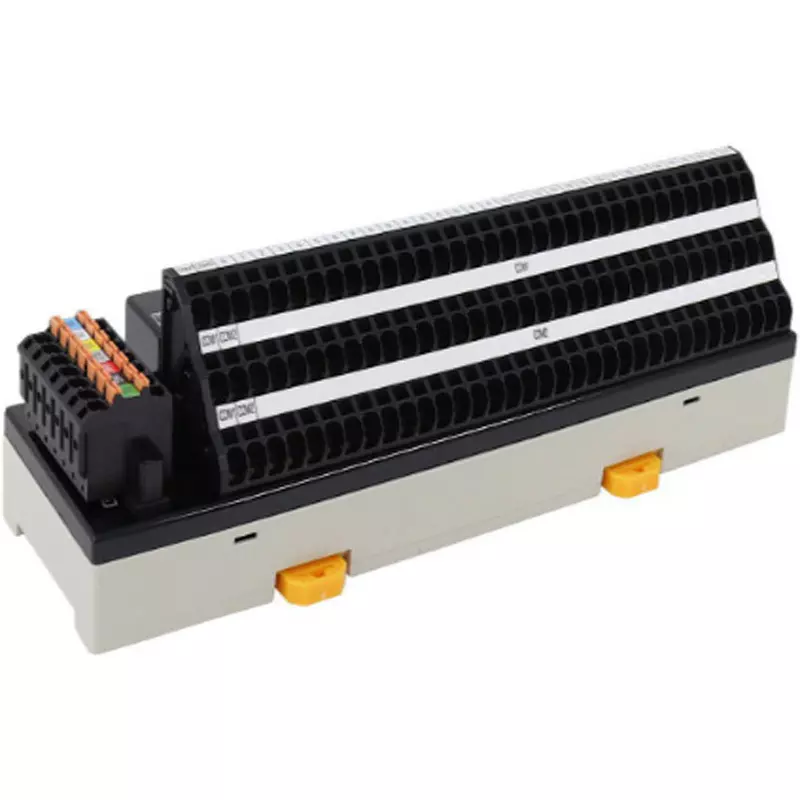

| Model No | C32X-GT1VR |
| Type of Product | Assembly Terminal Block |
| Voltage | I/O unit: DC 20.4 to 26.4 V (ripple rate within 5%), OFF: 3 V or less, ON: 15 V or more |
| Current | ON: 3 Aor more |
Model No |
C32X-GT1VR |
Type of Product |
Assembly Terminal Block |
Voltage |
I/O unit: DC 20.4 to 26.4 V (ripple rate within 5%), OFF: 3 V or less, ON: 15 V or more |
Current |
ON: 3 Aor more |
Pole |
32 points assigned per station |
Insulation Resistance |
DC 500V between all DC external terminals and earth, 10 mΩ or more with an insulation resistance tester |
Monotaro ID |
17184855 |
Network Type |
Control system: CC-Link |
Connection Type |
External: 7-pole 2-piece connector (transmission line, unit power terminal, FG terminal) |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Common Specifications |
32 points per common |
Specifications |
Input |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Mass (g) |
About 340 |
Insulation Type |
Photocoupler insulation |
Withstand voltage (V) |
DC external terminals - earth: 500VAC for 1 minute |
Number of Input/Output Points |
32 inputs |
Current (mA) |
I/O unit: 60 or less (DC24V, when all points are ON), OFF: 0.5 or less |
Noise Immunity |
DC type noise voltage ± 900Vp-p, noise width 1μs, noise frequency 45Hz, by noise simulator |
Rated Input Current |
About 5 mA |
Rated Input Voltage (V) |
DC24 |
Input format |
Sink and source shared type |
Response Time |
(OFF→ON): 0.2ms or less (at 24V DC), (ON→OFF): 0.2ms or less (at 24V DC) |
Operating Voltage Range (V) |
DC 19.2 to 26.4 (Ripple rate within 5%) |
Connecting Terminal |
Spring Lock (push-in terminal block) |
