Ships within 25 days
View
View
View
View

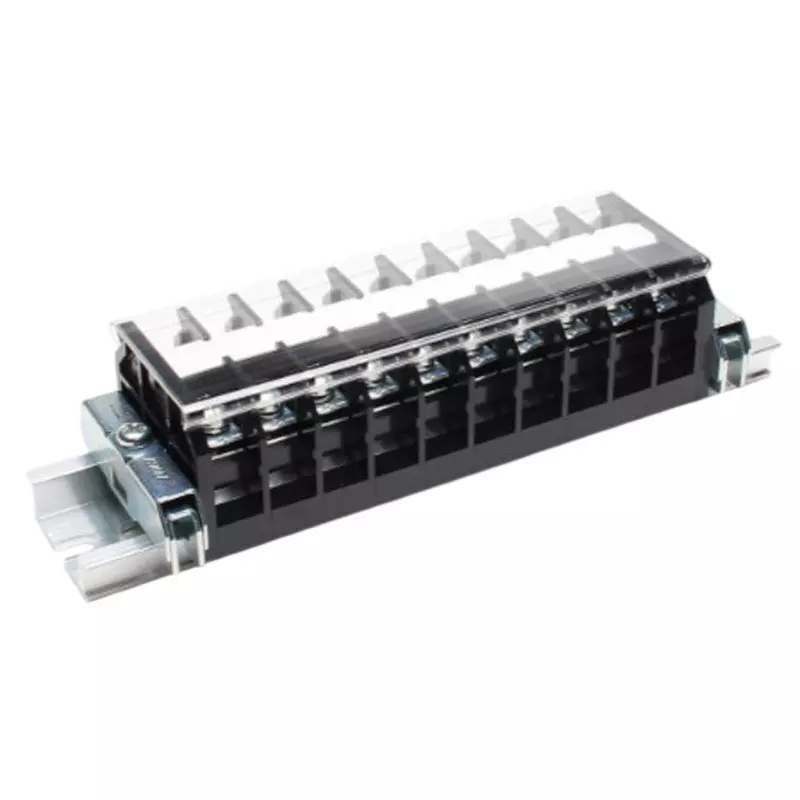

| Model No | PTUL2-40-11P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M4 |
| Shape | 1 Stage |
Model No |
PTUL2-40-11P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M4 |
Shape |
1 Stage |
Monotaro ID |
12297961 |
Tightening Torque (Nm) |
1.2 to 1.8 |
No. of Pole |
11 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Compatible Cable |
3.5・5.5(JIS) |
Rated Insulation Voltage (V) |
AC/DC 1000, UL certified, CSA certified, TU certified: AC/DC 600 |
Terminal Spacing |
11 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Screw Up |
Applicable Wire Range AWG |
UL certified specifications: AWG12-10 (stranded wire), CSA certified specifications: AWG12-10 (stranded wire), TUV certified specifications: AWG18-10 (stranded wire) |
Set Contents |
Terminal block |
Rated Carrying Current (A) |
<sup>3.5mm² : 30, 5.5mm² : 40, UL certified: 35, CS certified: 35, TUV certified: 40 |
Overall Length L |
Terminal block: 127 mm |
Mounting Pitch b (mm) |
150 |
Overall Length A (mm) |
Rail: 160 |
