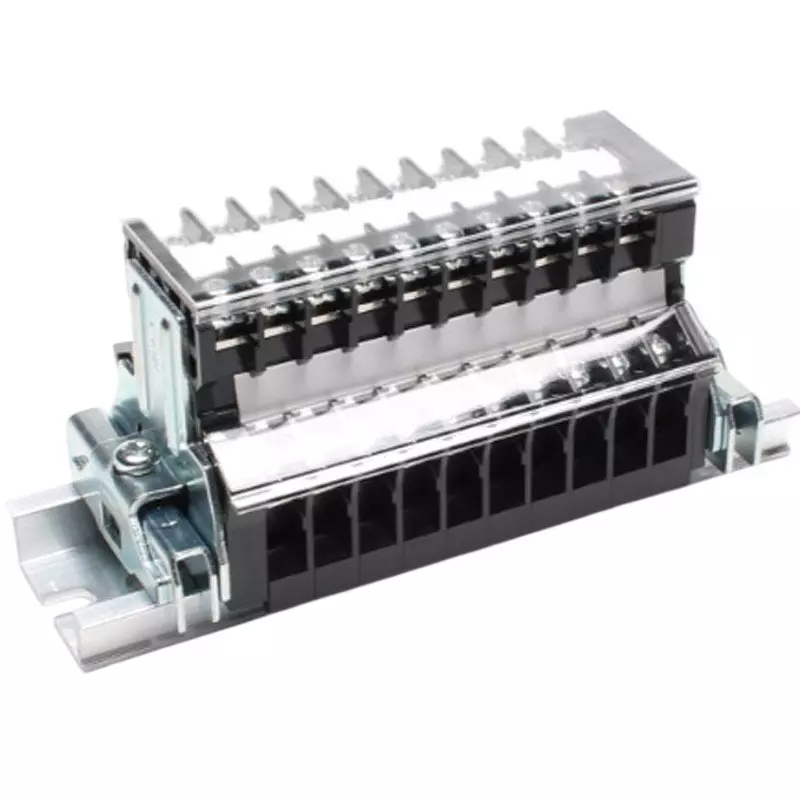

| Model No | PTWL-SS10A-23U |
| Type of Product | Assembly Terminal Block |
| Screw Size | M3 |
| Shape | 2nd grade |
Model No |
PTWL-SS10A-23U |
Type of Product |
Assembly Terminal Block |
Screw Size |
M3 |
Shape |
2nd grade |
Monotaro ID |
13047688 |
Tightening Torque (Nm) |
0.5 to 1.2 |
Terminal Screw |
M3 x 9.8L ± support screw |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
AC DC380 |
Terminal Spacing |
7 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Rated Carrying Current (A) |
0.75mm²：11/1.25mm²：15 |
Number of Unit |
23 |
Type of Terminal Fitting |
DIN35mm |
