Ships within 25 days
View
View
View
View
| Model No | VTXL-1.5/2R-79P |

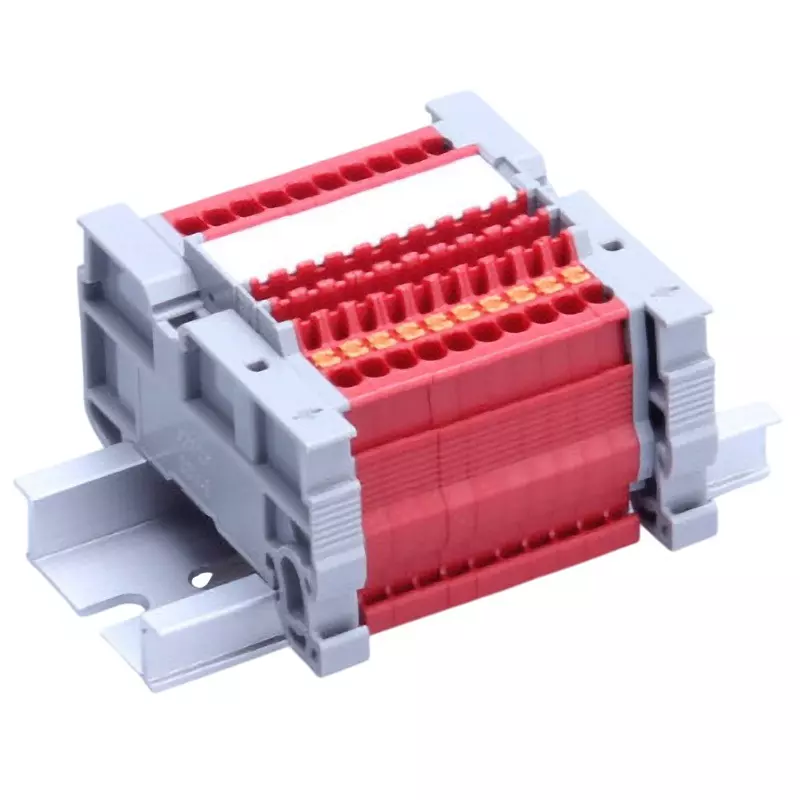

| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
| Monotaro ID | 20218698 |
Model No |
VTXL-1.5/2R-79P |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
20218698 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Applicable crimp terminal |
DIN46228-4 compliant |
Specifications |
Terminal block total length L: terminal width (3.5mm) x number of poles (P) + 2 side plates (4mm) |
Terminal Spacing |
3.5 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Component Part |
[Intermediate Panel] VTX-1.5/2 [Side Panel] VTX-1.5/2E, VTX-1.5/2E1 [Name Plate] AM-10 [Rail] DAV4 [Fastener] SDV-3 |
Type of Terminal Fitting |
DIN35mm |
Wire Stripping Length |
10 to 11 mm |
