Ships within 25 days
View
View
View
View

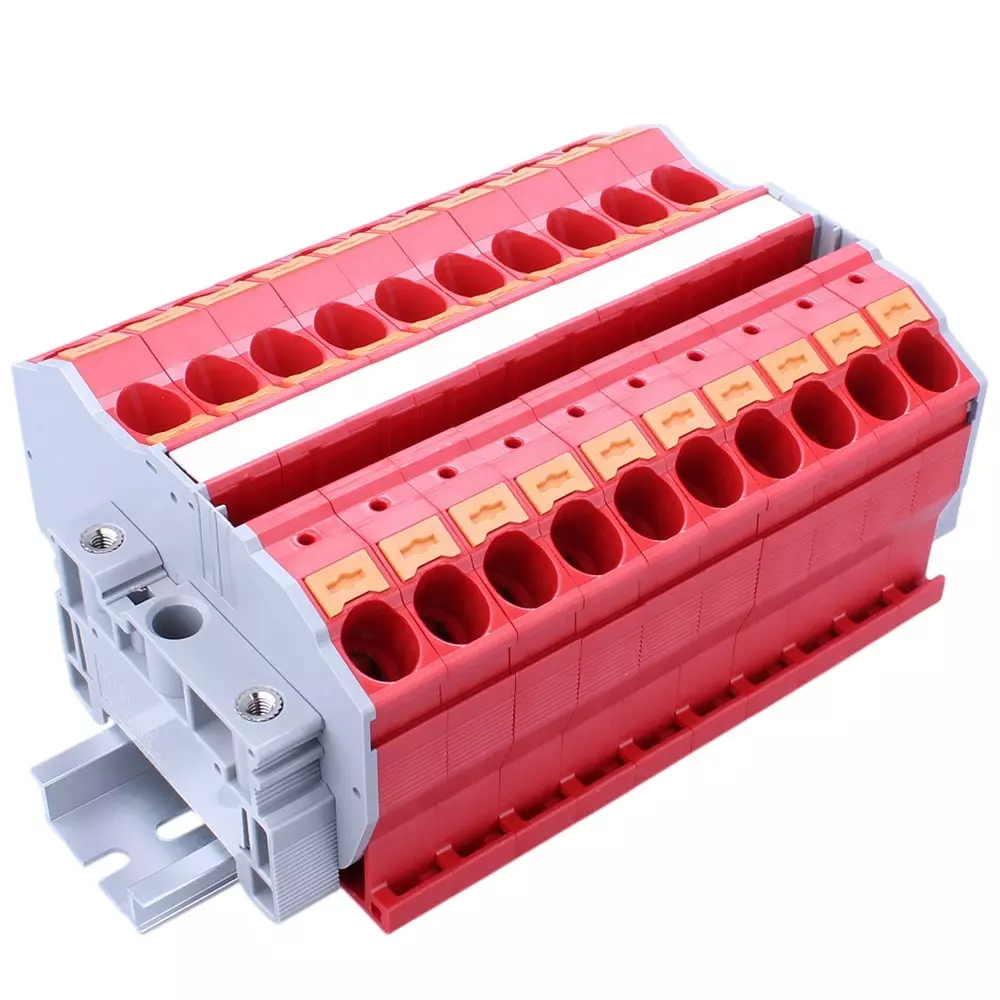

| Model No | VTXL-16/3R-55P |
| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
| Monotaro ID | 61263941 |
Model No |
VTXL-16/3R-55P |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
61263941 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Applicable crimp terminal |
DIN46228-4 compliant |
Terminal Spacing |
12.2 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Overall Length L |
Terminal block: terminal width (12.2) x number of poles (P) + 2 side plates (4.4) mm |
Component Part |
[Intermediate board] VTX-16/3<br> [Side plate] VTX-16/3E/VTX-16/3E1<br> [Name plate] AM-10<br> [Rail] DAV4<br> [Fastener] GTY34 |
Wire Stripping Length |
19 to 21 mm |
