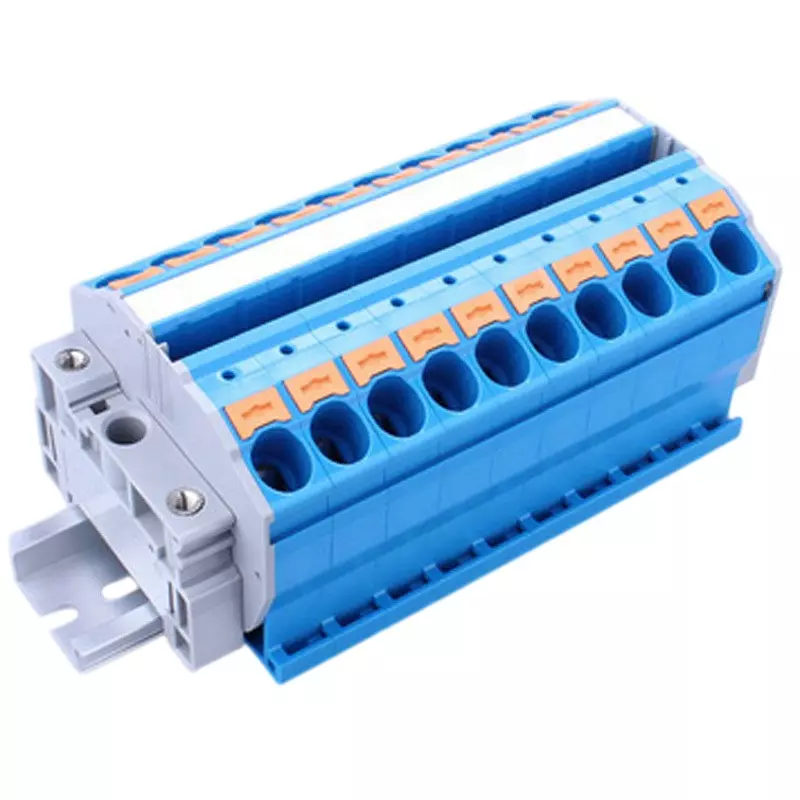

| Model No | VTXL-16/2BL-31P |
| Color | Blue |
| Type of Product | Assembly Terminal Block |
| Material | Insulation body: 66 nylon resin UL94 V-0, Conductive plate: Copper, Spring: SUS, Name plate: PVC (white), Button: 66 nylon resin UL94 V-0 |
Model No |
VTXL-16/2BL-31P |
Color |
Blue |
Type of Product |
Assembly Terminal Block |
Material |
Insulation body: 66 nylon resin UL94 V-0, Conductive plate: Copper, Spring: SUS, Name plate: PVC (white), Button: 66 nylon resin UL94 V-0 |
Insulation Resistance |
200 mΩ or more between each live part and between each live part and the mounting metal plate (DC 500V megger) |
Shape |
1 Stage |
Monotaro ID |
61051938 |
No. of Pole |
31 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
1000 V |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Withstand voltage (V / min) |
[Power frequency withstand voltage] 3000 |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
24 / 32 / 41 / 57 / 76 A |
Temperature Rise |
Temperature Rise of Conductive Metal Fittings: 35°C or Less |
Rated Impulse Withstand Voltage (kV) |
6 to 8 kV |
Conformed Standard |
JIS C 8201-7-1 / NECA C 2811 (formerly JIS C 2811) |
Terminal Block Used |
VTX-16/2BL |
Operating Temperature / Humidity Range |
Ambient temperature: -25 to +60°C (no freezing or condensation) Relative humidity: 45 to 85% |
