Ships within 25 days
View
View
View
View

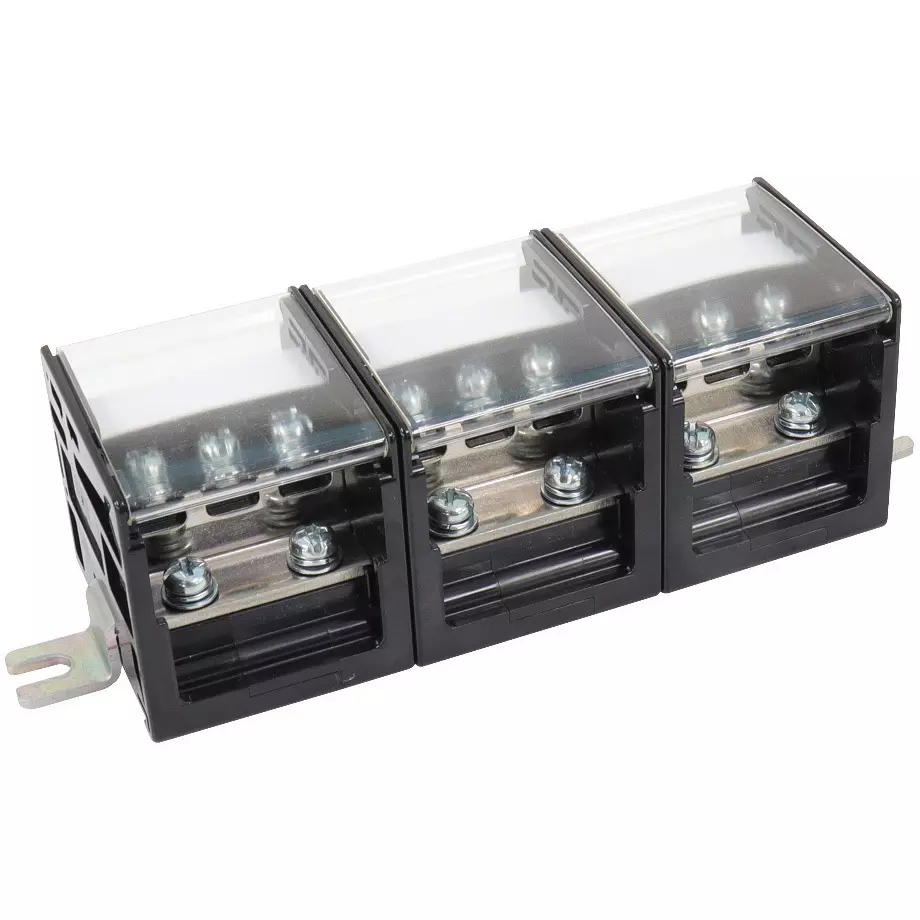

| Model No | CMNK-502-1P |
| Type of Product | Assembly Terminal Block |
| Material | Body: PC (black) UL94V-0, Conductive plate: Copper alloy (Ni plated), Terminal screw: Iron (zinc plated trivalent chromate), Cover: PC (transparent) UL94V-0, Name plate: PVC (white) |
| Relative Humidity | 45 to 85% |
Model No |
CMNK-502-1P |
Type of Product |
Assembly Terminal Block |
Material |
Body: PC (black) UL94V-0, Conductive plate: Copper alloy (Ni plated), Terminal screw: Iron (zinc plated trivalent chromate), Cover: PC (transparent) UL94V-0, Name plate: PVC (white) |
Relative Humidity |
45 to 85% |
Insulation Resistance |
200 mΩ or more between each live part and between each live part and the mounting metal plate (DC 500V megger) |
Monotaro ID |
61918407 |
Tightening Torque (Nm) |
1.2 to 1.8 Nm |
No. of Pole |
1 Pole |
Terminal Screw |
M4 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Specifications |
M4 x 10L: 8 pieces |
Rated Insulation Voltage (V) |
800 V AC/DC |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Connectable Wire (mm2) |
MAX 6.0 |
Withstand voltage (V) |
Commercial frequency: 2500/1 minute |
Rated Carrying Current (A) |
50 A |
Mounting Hole Spacing |
55 |
Temperature Rise |
Temperature Rise of Conductive Metal Fittings: 45° or Less |
Rated Impulse Withstand Voltage (kV) |
8 kV |
Ambient Temperature (℃) |
-25 to +60°C (no freezing or condensation) |
Terminal Length |
67 mm |
