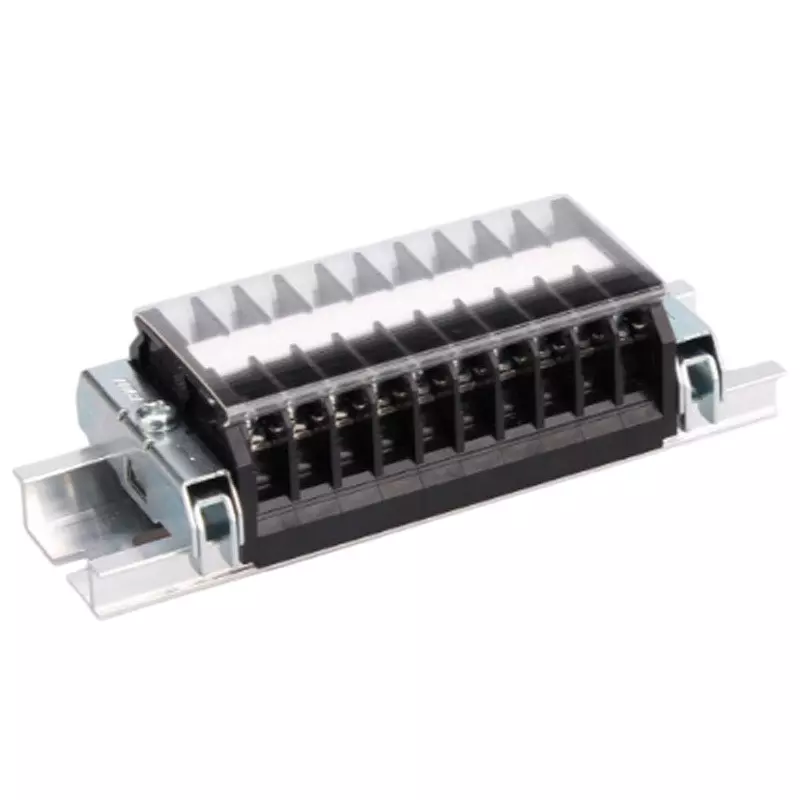

| Model No | PTL-10-79P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M3 |
| Shape | 1 Stage |
Model No |
PTL-10-79P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M3 |
Shape |
1 Stage |
Monotaro ID |
9235610 |
Tightening Torque (Nm) |
0.5 to 1.2 |
No. of Pole |
79 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Terminal Block |
Total length L 558 |
Rated Insulation Voltage (V) |
AC/DC 800/AC/DC 800(UL certified)AC/DC 300(CUL certified)AC/DC 300(TUV certified)AC/DC 600 |
Terminal Spacing |
7 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Rated Carrying Current (A) |
11/16 (UL certified) 15 (CUL certified) 15 (TUV certified) 16 |
Cable Size |
(JIS) 0.75/1.25 (UL certified) AWG20 to 16 stranded wire (CUL certified) AWG20 to 16 stranded wire (TUV certified) AWG20 to 16 stranded wire |
Component Part |
Intermediate plate: PT-10 / Side plate: PT-10L2 / Cover: CA-34 / Name plate: AM-10 / Rail: DAV4 / Shaft: HDV-1 |
