| Model No | PTUL2-20-89P |

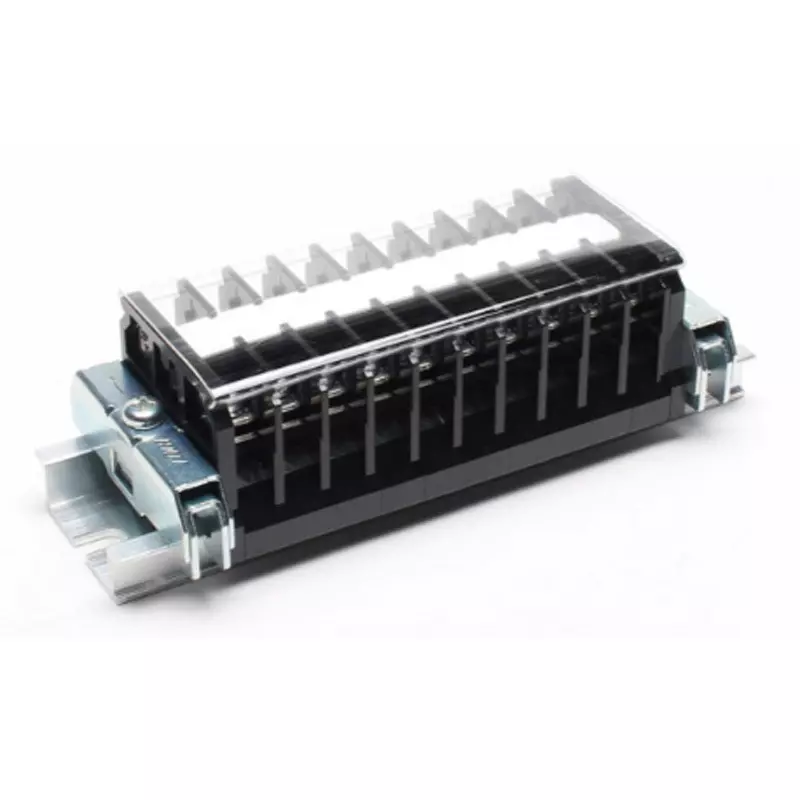

| Type of Product | Assembly Terminal Block |
| Screw Size | M3.5 |
| Tightening Torque | 0.8 to 1.4N・m |
Model No |
PTUL2-20-89P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M3.5 |
Tightening Torque |
0.8 to 1.4N・m |
Mounting |
DIN35mm |
Shape |
1 Stage |
Monotaro ID |
12219491 |
No. of Pole |
89 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
AC・DC 800 |
Terminal Spacing |
8 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Screw Up |
Overall Length L |
Terminal block: 718 mm |
Component Part |
Intermediate plate: PTU-20, Side plate: PTU-20L2, Cover: CA-34, Name plate: AM-10, Rail: DAV4, Fastener: HDV-1 |
Energized Current Rating |
1.25mm²：16A, 2mm²：22A |
