| Model No | VTXL-16/2-36P |

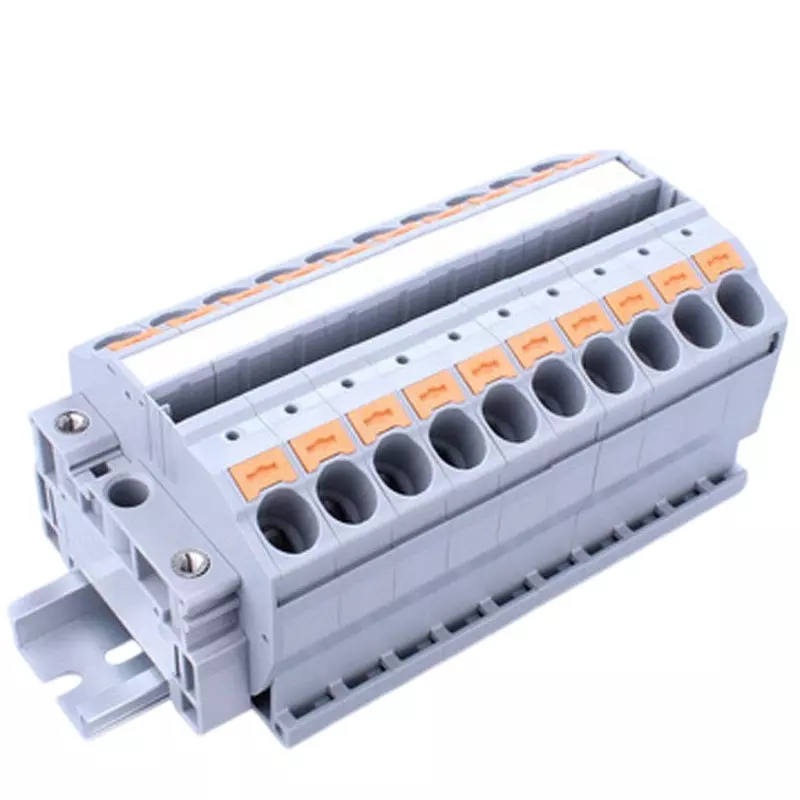

| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
| Monotaro ID | 60954340 |
Model No |
VTXL-16/2-36P |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
60954340 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Terminal Block |
Terminal width (12.2mm) x number of poles (P) + 2 side plates (4.4mm) |
Rated Insulation Voltage (V) |
1000 V |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
24 / 32 / 41 / 57 / 76 A |
Component Part |
[Intermediate Panel] VTX-16/2 / [Side Panel] VTX-16/2E, VTX-16/2E1 / [Name Plate] AM-10 / [Rail] DAV4 / [Fastener] GTY34 |
Terminal Block Used |
VTX-16/2 |
