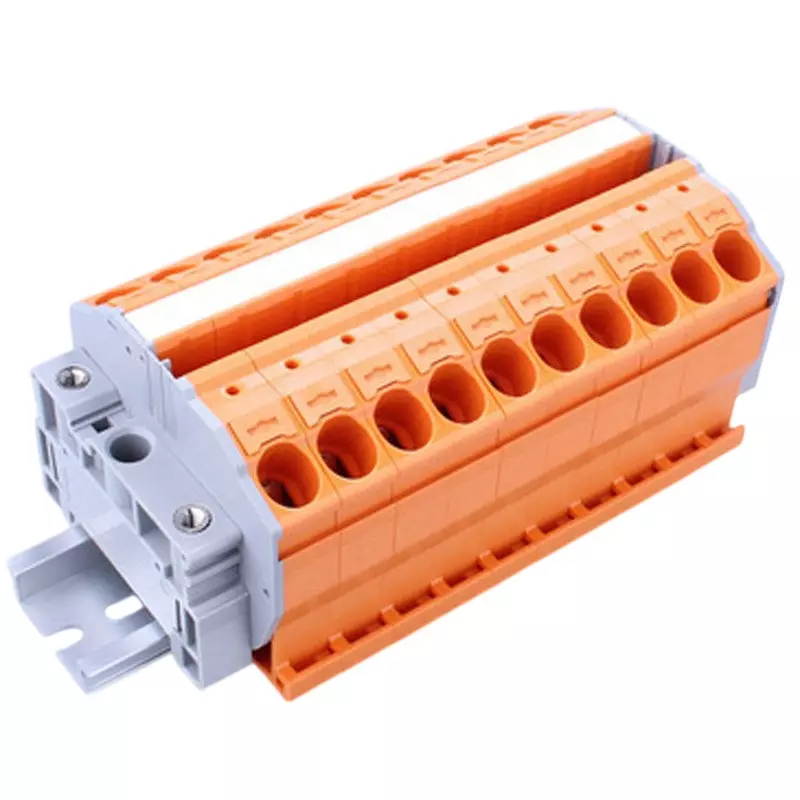

| Model No | VTXL-16/2O-52P |
| Color | Orange |
| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
Model No |
VTXL-16/2O-52P |
Color |
Orange |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
61020639 |
No. of Pole |
52 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Compatible Cable |
0.5 to 10 |
Applicable crimp terminal |
DIN46228-4 compliant |
Rated Insulation Voltage (V) |
1000 V AC/DC |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
57, 60, 57 A |
Cable Size |
[UL/cUL certified] AWG20-6 (stranded wire), AWG20-10 (solid wire), AWG16-AWG8 (insulated ferrule) [TUV certified] 0.5-10 (stranded wire), Φ0.5mm-Φ3.2mm (solid wire), 1.25-10 (insulated ferrule) |
Component Part |
[Rail] DAV4, [Fastener] GTY34, [Nameplate] AR-10 |
Wire Stripping Length |
18 to 19 mm |
