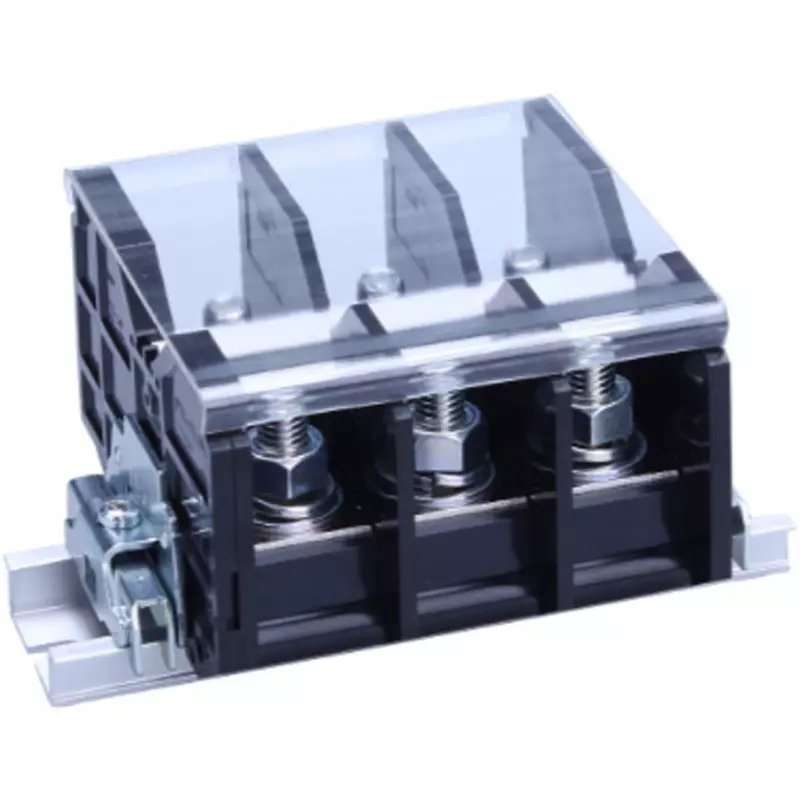

| Model No | PTXL-60S-1P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M8 |
| Shape | 1 Stage |
Model No |
PTXL-60S-1P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M8 |
Shape |
1 Stage |
Monotaro ID |
13053471 |
Tightening Torque (Nm) |
6.0 to 9.0(JIS C 8201-7-1) / 8.9 to 10.8(JIS C 2805) |
No. of Pole |
1 Pole |
Terminal Screw |
M8 x 22.5L hex nut |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
AC/DC1000 |
Terminal Spacing |
25 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Rated Carrying Current (A) |
22mm²：94 / 38mm²：132 / 60mm²：132 |
Structure |
stud |
Type of Terminal Fitting |
DIN35mm |
