Ships within 25 days
View
View
View
View
| Model No | RTL-20S-22P |

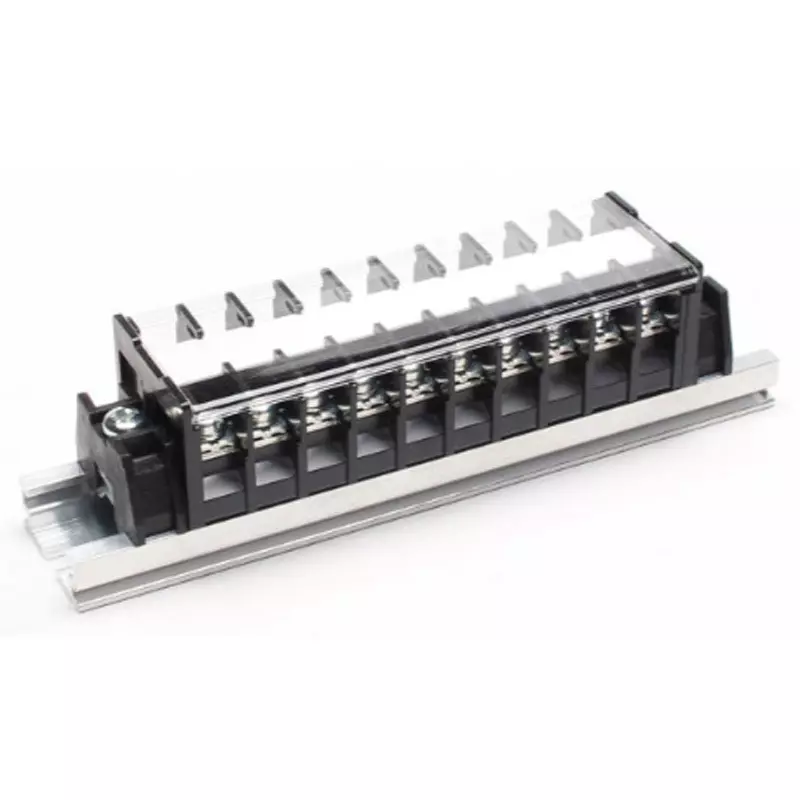

| Type of Product | Assembly Terminal Block |
| Screw Size | M3.5 |
| Shape | 1 Stage |
Model No |
RTL-20S-22P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M3.5 |
Shape |
1 Stage |
Monotaro ID |
14590147 |
Tightening Torque (Nm) |
0.8 to 1.4 |
No. of Pole |
22 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
C-Type 16 mm Rail |
Terminal Spacing |
8 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Overall Length L |
[Terminal block] 181 mm |
Mounting Hole Spacing |
【B】213 |
Overall Length (mm) |
[Terminal block] Terminal width (8mm) x Number of poles (P) + 2 side plates (5mm) |
Component Part |
[Intermediate board] RT-20S [Side board] RT-20L [Cover] CA-28 [Name plate] AM-10 [Rail] IAS4 [Fastener] HIS-1 |
Overall Length A (mm) |
[Rail] 220 |
