| Model No | VTL-5MD-42P |

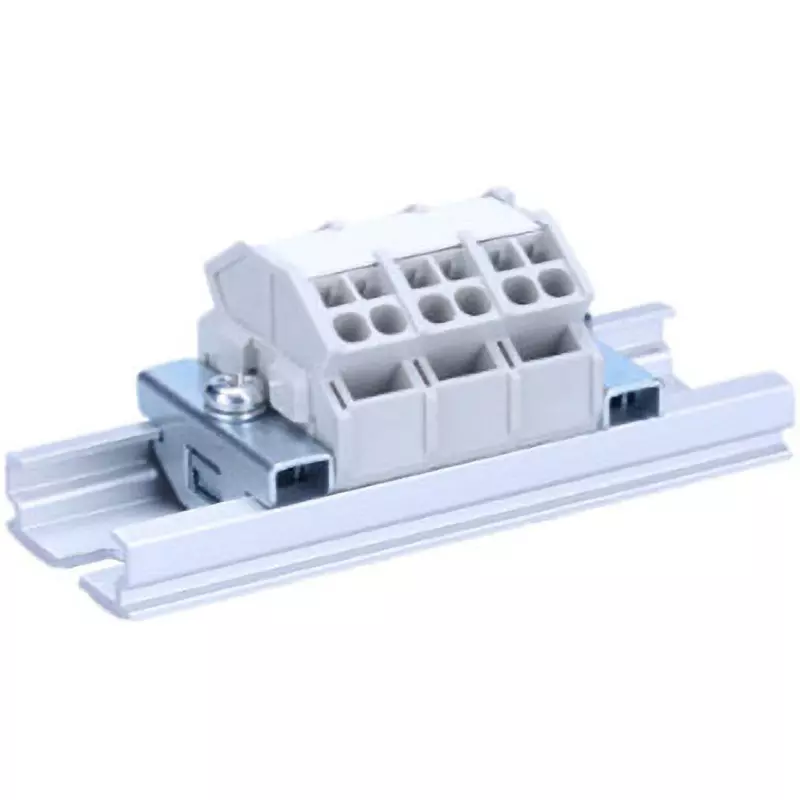

| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
| Monotaro ID | 17509217 |
Model No |
VTL-5MD-42P |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
17509217 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
C Type 20 mm Rail |
Rated Insulation Voltage (V) |
AC DC300 |
Terminal Spacing |
10 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
15 |
Overall Length L |
Terminal block: terminal width (10mm) x number of poles (P) + 1 side plate (1.5mm) mm |
Cable Size |
0.5 to 2 |
Constitution |
[Intermediate plate] VT-5MD [Side plate] VT-5ML(A) [VT-5ML(B)] [Name plate] AM-10 [Rail] AS4 [Fastening bracket] ATO-1 |
Wire Stripping Length |
9 to 10 mm |
