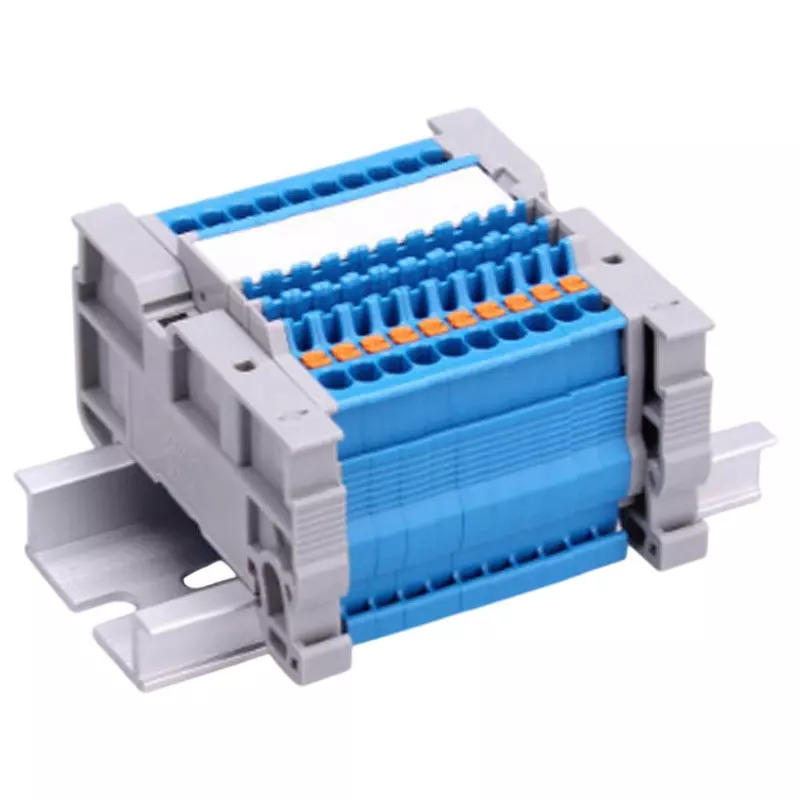

| Model No | VTXL-1.5/2BL-12P |
| Color | Blue |
| Type of Product | Assembly Terminal Block |
| Mounting | DIN35mm |
Model No |
VTXL-1.5/2BL-12P |
Color |
Blue |
Type of Product |
Assembly Terminal Block |
Mounting |
DIN35mm |
Shape |
1 Stage |
Monotaro ID |
18716148 |
No. of Pole |
12 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Applicable crimp terminal |
DIN46228-4 compliant |
Rated Insulation Voltage (V) |
[General specifications/TU certified specifications] AC/DC 500, [UL certified specifications] AC/DC 300 |
Terminal Spacing |
3.5 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Rated Carrying Current (A) |
[General specifications] -/6/9/17/17, [UL certified specifications] 10, [TUV certified specifications] 17 |
Overall Length L |
[Terminal block] 46 mm |
Mounting Hole Spacing |
70 |
Cable Size |
[General specifications (JIS)] 0.08 / 0.5 / 0.75 / 1.25 / 1.5 |
Wire Stripping Length |
10 to 11 mm |
Rail Length |
80 mm |
