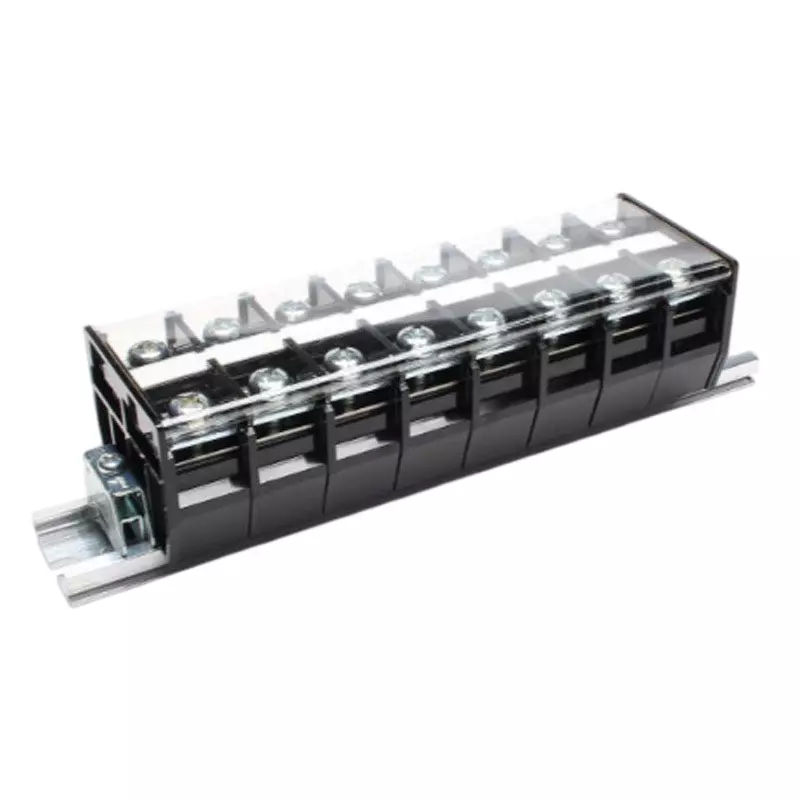

| Model No | ATL-60NS-19P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M6 |
| Shape | 1 Stage |
Model No |
ATL-60NS-19P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M6 |
Shape |
1 Stage |
Monotaro ID |
7257857 |
Tightening Torque (Nm) |
2.5 to 3.7 |
No. of Pole |
19 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
C Type 20 mm Rail |
Specifications |
Tropical Treatment |
Rated Insulation Voltage (V) |
8mm², 14mm², 22mm²：AC・DC 600 |
Terminal Spacing |
19 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Screw Up |
Rated Carrying Current (A) |
8mm²：50, 14mm²：70, 22mm²：90 |
Cable Size |
(JIS)8, 14, 22 |
Overall Length (mm) |
[Terminal block] 365 |
