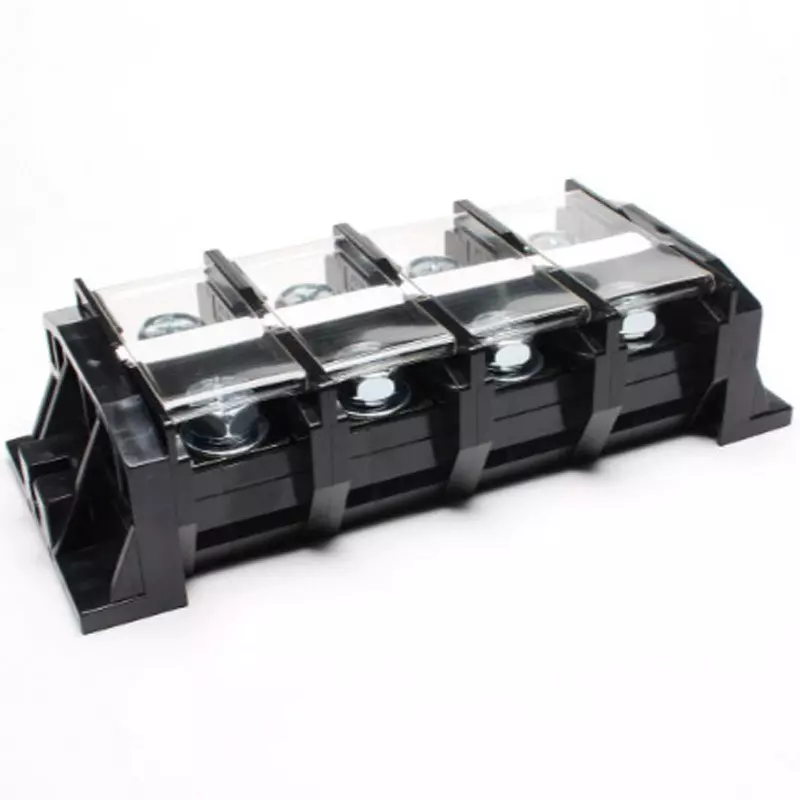

| Model No | PTKC-200-6P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M10 |
| Shape | 1 Stage |
Model No |
PTKC-200-6P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M10 |
Shape |
1 Stage |
Monotaro ID |
9230999 |
Tightening Torque (Nm) |
10.0 to 14.7 |
No. of Pole |
6 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
Direct Attachment |
Terminal Block |
Total length L 286mm |
Rated Insulation Voltage (V) |
AC/DC 1000/AC/DC 1000/AC/DC 1000 (UL certified) AC/DC 600 (CSA certified) AC/DC 600 (TU certified) AC/DC 660 |
Terminal Spacing |
39 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Rated Carrying Current (A) |
132/175/240 (UL certified) 200 (CSA certified) 200 (TUV certified) 200 |
Structure |
Large current (200A~) |
Shaft Length (mm) |
248 |
Cable Size |
(JIS) 38/60/100 (UL certified) AWG2 to 4/0 Stranded wire (CSA certified) AWG2 to 4/0 Stranded wire (TUV certified) AWG2 to 250 MCM Stranded wire |
Component Part |
Intermediate plate: PT-200 / Side plate: PT-230KC / Cover: CTC-200, CTEP-200 / Name plate: AP-12 / Shaft: M6 shaft |
Mounting Screw Spacing (mm) |
B 271 |
