Ships within 25 days
View
View
View
View

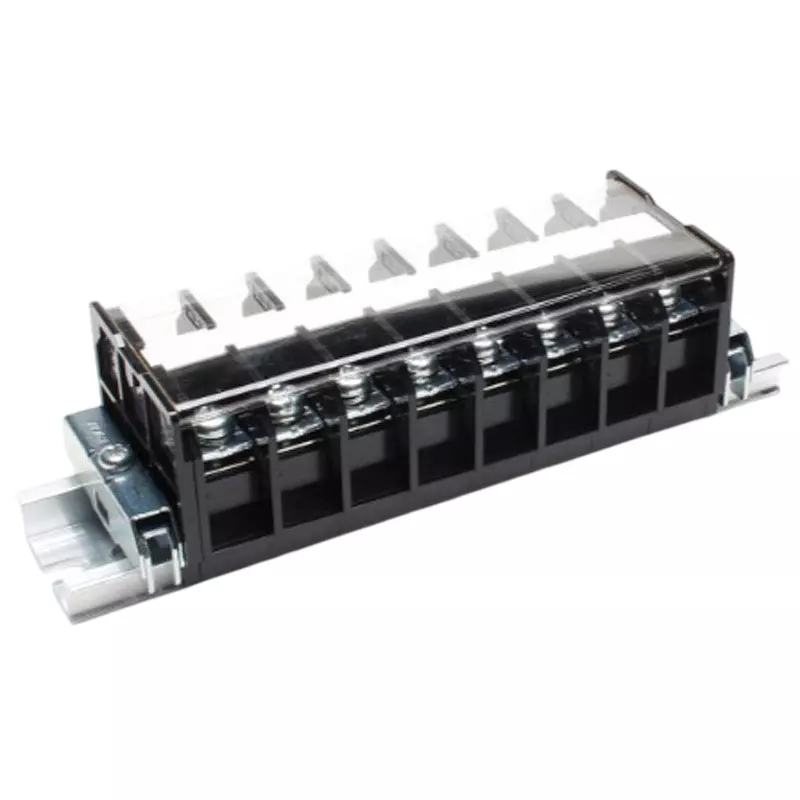

| Model No | PTUL-80-1P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M5 |
| Shape | 1 Stage |
Model No |
PTUL-80-1P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M5 |
Shape |
1 Stage |
Monotaro ID |
12298731 |
Tightening Torque (Nm) |
2.0 to 3.0 |
No. of Pole |
1 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Compatible Cable |
5.5, 8, 14(JIS) |
Rated Insulation Voltage (V) |
AC/DC 1000, UL certified, CSA certified, TU certified: AC/DC 600 |
Terminal Spacing |
14 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Screw Up |
Applicable Wire Range AWG |
UL certified specifications: AWG8-6 (stranded wire), CSA certified specifications: AWG8-6 (stranded wire), TUV certified specifications: AWG12-6 (stranded wire) |
Set Contents |
Terminal block |
Rated Carrying Current (A) |
<sup>5.5mm² : 40, 8mm² : 50, 14mm² : 75, UL certified: 68, CS certified: 68, TUV certified: 75 |
Overall Length L |
Terminal block: 20 mm |
Mounting Pitch b (mm) |
50 |
Overall Length A (mm) |
Rail: 60 |
