| Model No | VTXL-1.5/4O-267P |
| Color | Orange |

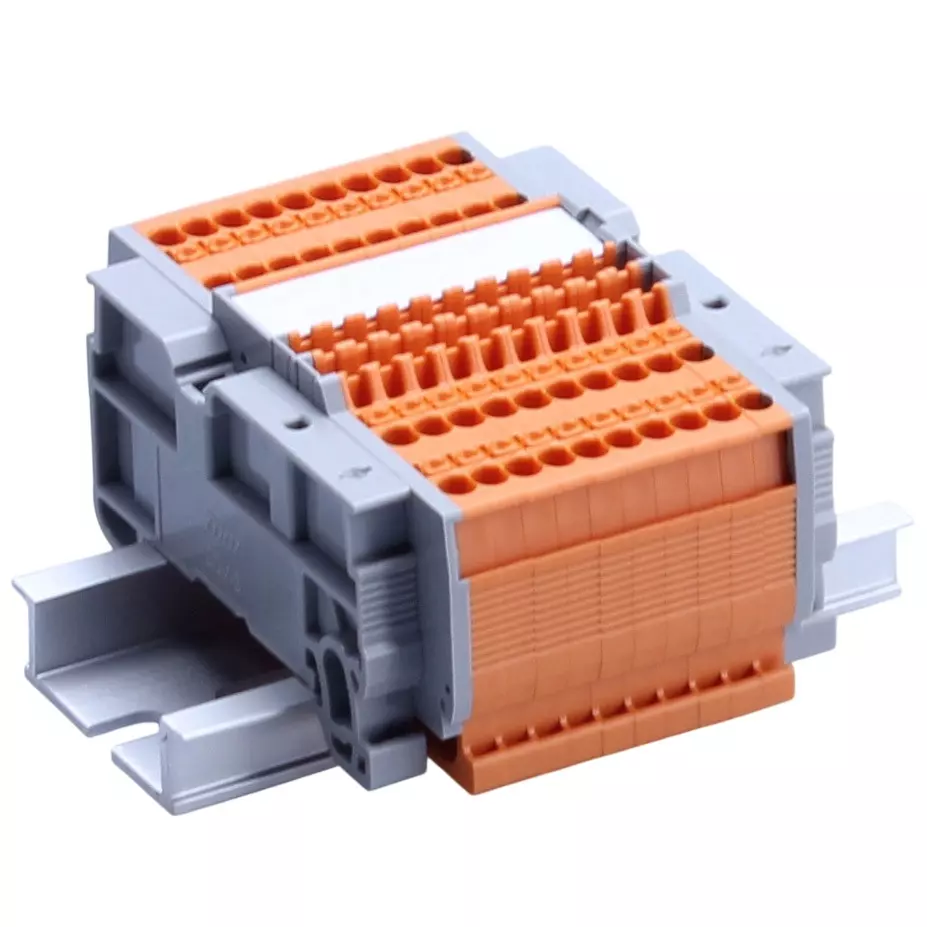

| Type of Product | Assembly Terminal Block |
| Shape | 1 Stage |
Model No |
VTXL-1.5/4O-267P |
Color |
Orange |
Type of Product |
Assembly Terminal Block |
Shape |
1 Stage |
Monotaro ID |
57564529 |
No. of Pole |
267 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Applicable crimp terminal |
DIN46228-4 compliant |
Rated Insulation Voltage (V) |
General specifications: AC/DC 500, UL certified specifications: AC/DC 300, TU certified specifications: AC/DC 500 |
Terminal Spacing |
3.5 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Cable Size |
0.08/0.5/0.75/1.25/1.5 |
Energized Current Rating |
General specifications: -/6A/9A/17A/17A, UL certified specifications: 10A, TUV certified specifications: 17A |
Type of Terminal Fitting |
DIN35mm |
Wire Stripping Length |
10 to 11 mm |
Cable specifications |
UL certified: Standard specification AWG28-16, TUV certified: AWG28-16 |
