| Model No | PTXL-100-1P |

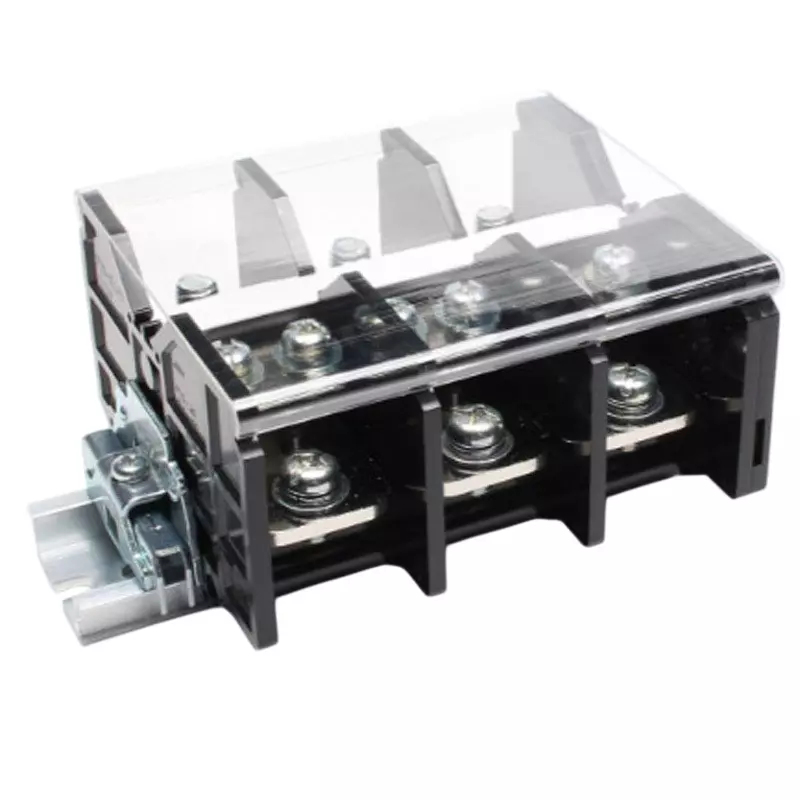

| Type of Product | Assembly Terminal Block |
| Monotaro ID | 13052798 |
| No. of Pole | 1 Pole |
Model No |
PTXL-100-1P |
Type of Product |
Assembly Terminal Block |
Monotaro ID |
13052798 |
No. of Pole |
1 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
600 V AC/DC |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Energized Current Rating |
[Input side] M8 x 22.5L: 22mm <sup>x</sup> 94A / 38mm <sup>x</sup> 132A / 60mm <sup>x</sup> 175A [Output side (total: 175A MAX)] M6 x 12L: 8.0mm <sup>x</sup> 50A / 14mm <sup>x</sup> 70A / 22mm <sup>x</sup> 94A, M5 x 10L: 3.5mm <sup>x</sup> 30A / 5.5mm <sup>x</sup> 40A / 8.0mm <sup>x</sup> 50A |
Standard Tightening Torque (N.m) |
[Input side] M8 x 22.5L: 6.0 to 9.0 (JIS C 8201-7-1), 8.9 to 10.8 (JIS C 2805) [Output side] M6 x 12L: 2.5 to 3.7, M5 x 10L: 2.0 to 3.0 |
