Ships within 25 days
View
View
View
View
| Model No | VTXL-6/3-23P |
| Color | Gray |

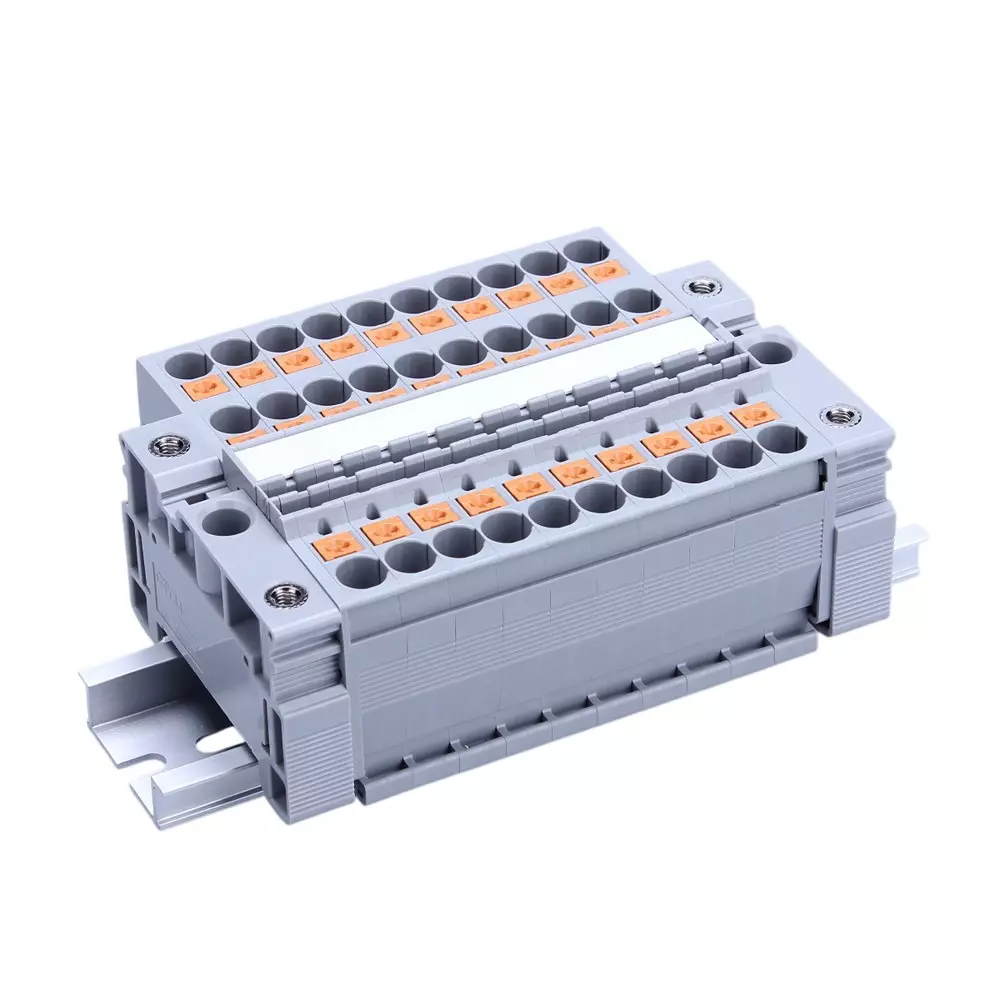

| Type of Product | Assembly Terminal Block |
| Monotaro ID | 72153211 |
Model No |
VTXL-6/3-23P |
Color |
Gray |
Type of Product |
Assembly Terminal Block |
Monotaro ID |
72153211 |
No. of Pole |
23 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
1000 V AC/DC |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Rated Carrying Current (A) |
41 A |
Mounting Hole Spacing |
230 |
Overall Length (mm) |
[Terminal block] 193 |
Component Part |
Intermediate plate: VTX-6/3, Side plates: VTX-6/3E, VTX-6/3E1, Nameplate: AM-10, Rail: DAV4, Fasteners: GTY34 |
Wire Stripping Length |
12 to 13 mm |
Rail Length |
240 mm |
Wire Specification-Thickness (mm²) |
0.5 to 6 mm² |
