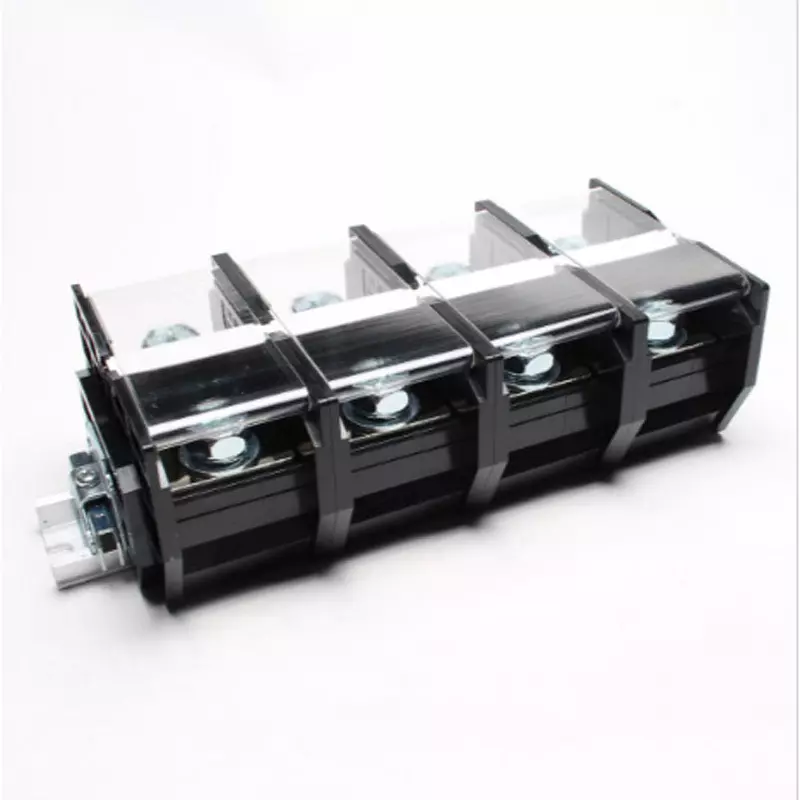

| Model No | PTL-300-13P |
| Type of Product | Assembly Terminal Block |
| Screw Size | M10 |
| Shape | 1 Stage |
Model No |
PTL-300-13P |
Type of Product |
Assembly Terminal Block |
Screw Size |
M10 |
Shape |
1 Stage |
Monotaro ID |
9344855 |
Tightening Torque (Nm) |
10.0 to 14.7 |
No. of Pole |
13 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Compatible Cable |
(JIS)60/100/150 |
Rated Insulation Voltage (V) |
AC・DC 1000 |
Terminal Spacing |
47 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Rated Carrying Current (A) |
175/240/310 |
Structure |
Large current (200A~) |
Mounting Dimensions (mm) |
DIN35 |
