Ships within 25 days
View
View
View
View
| Model No | PTWL-SS20A-72U |

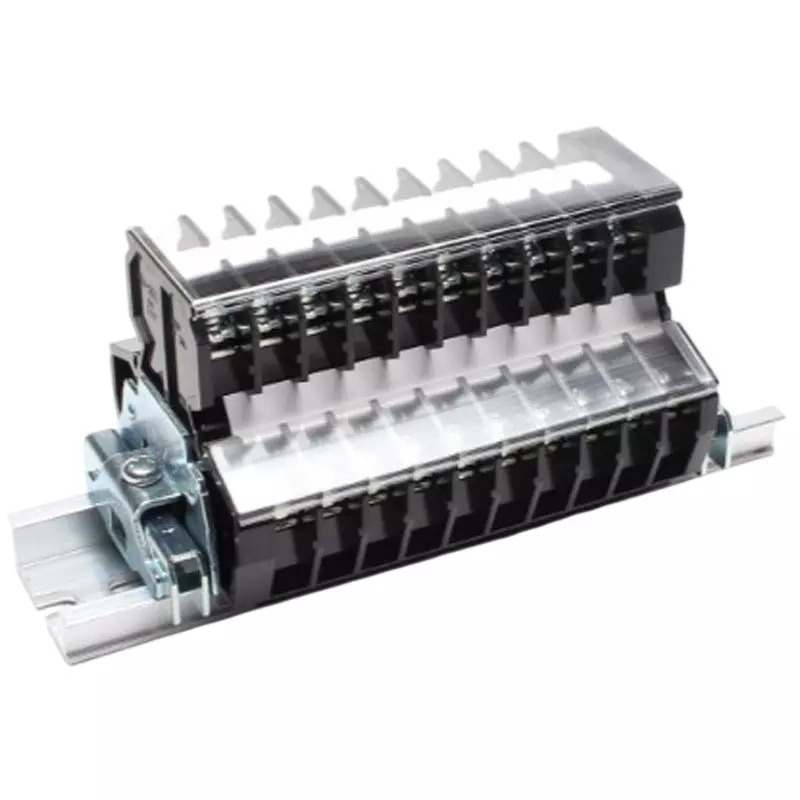

| Type of Product | Assembly Terminal Block |
| Screw Size | M3.5 |
| Shape | 2nd grade |
Model No |
PTWL-SS20A-72U |
Type of Product |
Assembly Terminal Block |
Screw Size |
M3.5 |
Shape |
2nd grade |
Monotaro ID |
13050725 |
Tightening Torque (Nm) |
0.8 to 1.4 |
Terminal Screw |
M3.5 x 9.8L ± support screws |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Rated Insulation Voltage (V) |
AC DC600 |
Terminal Spacing |
8 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Self-Up |
Rated Carrying Current (A) |
1.25mm²：16/2mm²：20 |
Number of Unit |
72 |
Type of Terminal Fitting |
DIN35mm |
