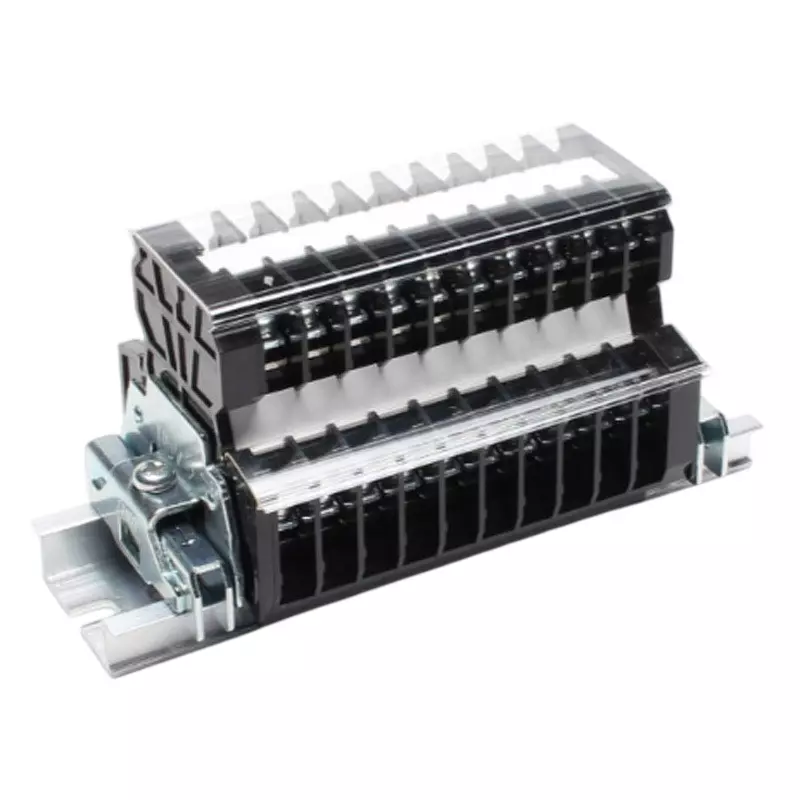

| Model No | PUWL-10A-96U |
| Type of Product | Assembly Terminal Block |
| Material | Intermediate plate: PUW-20, Side plate: PUW-20L (AB set), Cover: CA-30, Name plate: M-1LE, Rail: DAV4, Fastener: HDV-2 |
| Screw Size | M3 |
Model No |
PUWL-10A-96U |
Type of Product |
Assembly Terminal Block |
Material |
Intermediate plate: PUW-20, Side plate: PUW-20L (AB set), Cover: CA-30, Name plate: M-1LE, Rail: DAV4, Fastener: HDV-2 |
Screw Size |
M3 |
Shape |
2nd grade |
Monotaro ID |
13125135 |
Tightening Torque (Nm) |
0.5 to 1.2 |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Rated Insulation Voltage (V) |
[UL certified] AC/DC 300V [TUV certified] AC/DC 600V |
Terminal Spacing |
7 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Screw Up |
Rated Carrying Current (A) |
[UL certified specifications] 16 [TUV certified specifications] 16 |
Cable Size |
(JIS)0.75, 1.25 |
Energized Current Rating |
11A, 16A |
Number of Unit |
【U】96 |
Applicable Wire Size |
[UL certified] AWG20-16 [TUV certified] AWG20-16 |
Insulation Voltage |
[Rating] AC/DC 600V, AC/DC 600V |
