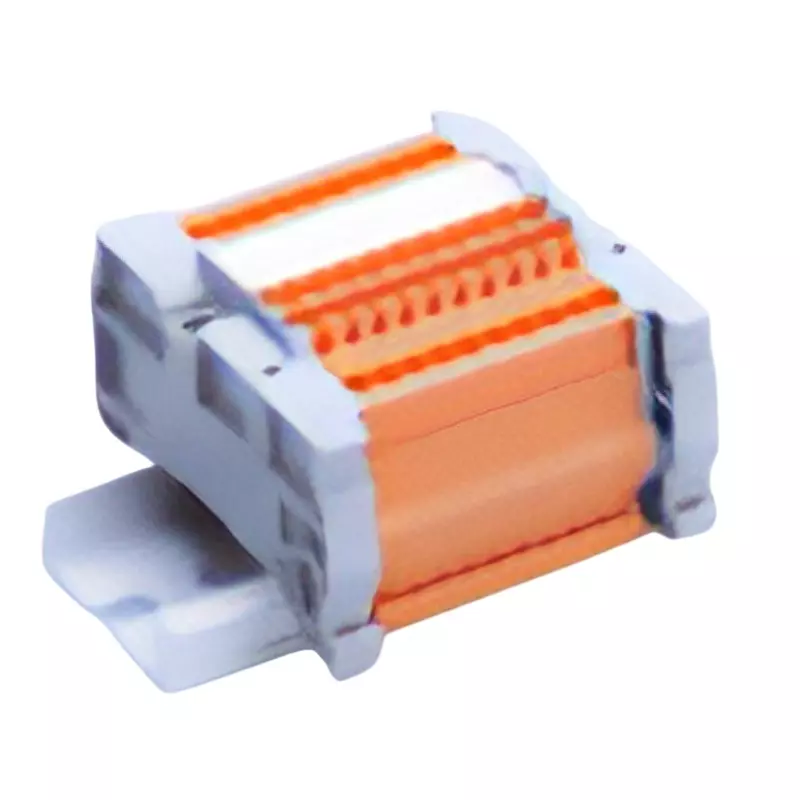

| Model No | VTXL-1.5/2O-209P |
| Color | Orange |
| Type of Product | Assembly Terminal Block |
| Material | Insulation body: 66 nylon resin UL94 V-0, Conductive plate: Copper, Spring: SUS, Name plate: PVC (white), Button: 66 nylon resin UL94 V-0 |
Model No |
VTXL-1.5/2O-209P |
Color |
Orange |
Type of Product |
Assembly Terminal Block |
Material |
Insulation body: 66 nylon resin UL94 V-0, Conductive plate: Copper, Spring: SUS, Name plate: PVC (white), Button: 66 nylon resin UL94 V-0 |
Insulation Resistance |
200 mΩ or more between each live part and between each live part and the mounting metal plate (DC 500V megger) |
Shape |
1 Stage |
Monotaro ID |
18999386 |
No. of Pole |
209 Pole |
Country of Origin |
Japan |
Import Country |
Direct Import from Japan |
Type of Sign |
DIN35 mm |
Applicable crimp terminal |
DIN46228-4 compliant |
Rated Insulation Voltage (V) |
AC・DC 500 |
Terminal Spacing |
3.5 mm |
Name of Manufacturer/Packer/Importer |
Toyo Giken Co., Ltd. |
Terminal Connection Type |
Spring Lock |
Withstand voltage (V) |
Commercial frequency: 3000/1 minute |
Rated Carrying Current (A) |
17 |
Overall Length L |
Terminal block: 735.5 mm |
Component Part |
Intermediate plate: VTX-1.5/2, Side plate: VTX-1.5/2E, VTX-1.5/2E1, Name plate: AM-10, Rail: DAV4, Fastener: SDV-3 |
Wire Stripping Length |
10 to 11 mm |
Temperature Rise |
Temperature rise of conductive metal fittings: 35°C or less |
Rated Impulse Withstand Voltage (kV) |
6 to 8 |
Conformed Standard |
JIS C 8201-7-1 NECA C 2811 (formerly JIS C 2811) |
Environmental Conditions to Use |
Ambient temperature: -25°C to +60°C (no freezing or condensation), relative humidity: 45 to 85% |
Wire Specification-Thickness (mm²) |
(JIS)1.5 mm² |
